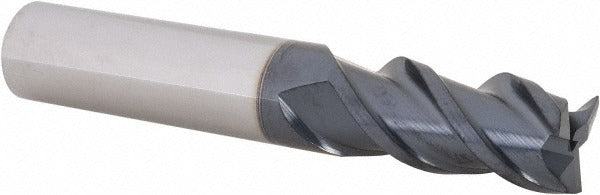

Iscar 5620807 Square End Mill 0.5in 3 Flute Carbide Tialn

Product Description

The ISCAR 5620807 is a solid carbide square end mill designed for high-performance metal removal in a wide range of machining applications. Built to IC900 material grade standards and finished with a TiAlN coating, this tool delivers heat resistance and wear durability suited to demanding cutting environments. The 45-degree helix angle promotes smooth chip evacuation and reduces cutting forces. With a 0.5-inch diameter and three flutes, it balances chip capacity with rigidity. This end mill is installed and operated by machinists and CNC programmers working in production and job shop settings.

This end mill is suited for milling ferrous metals, stainless and heat-resistant alloys, titanium, and cast materials, as indicated by its primary workpiece material codes H, K, M, P, and S. The right-hand cut and right-hand spiral flute geometry make it compatible with standard CNC machining centers and manual mills configured for conventional tooling. Its regular-length designation and straight-cylindrical shank allow straightforward setup in standard end mill holders, collet chucks, and shrink-fit toolholders. It is single-ended, meaning the cutting end is not reversible.

Key Features

• TiAlN coating provides elevated heat resistance for dry and high-speed cutting
• IC900 carbide grade delivers a balance of hardness and toughness for interrupted and continuous cuts
• 45-degree helix angle promotes efficient chip flow and reduces cutting forces
• Three-flute geometry provides chip clearance when machining alloys and heat-resistant materials
• Right-hand cut with right-hand spiral flute for use in standard CNC and manual milling setups
• Straight-cylindrical shank for compatibility with standard end mill holders and collet chucks

Compatibility

Suited for machining ferrous metals, stainless steels, heat-resistant alloys, titanium, and cast materials (material codes H, K, M, P, S). Designed for use in standard CNC machining centers and manual milling machines accepting a 0.5-inch straight-cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify that the end mill is seated to the correct gauge length in the holder before tightening. This tool is not center-cutting and should not be used for direct plunge operations.
