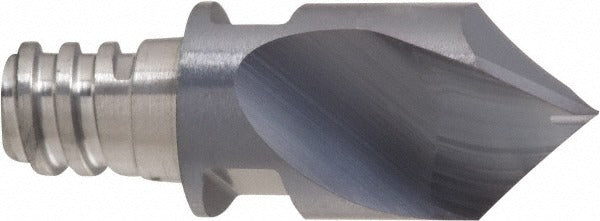

Iscar 5607710 Spotting Drill Milling Tip 8mm IC908 Carbide

Product Description

The ISCAR 5607710 is a replaceable carbide milling tip in the Multimaster MM ECD series, designed for spotting drill operations on CNC machining centers and milling platforms. The tip features an 8.00mm (0.3152 inch) cutting diameter with a 90-degree included angle and a 45-degree lead angle, making it well suited for center-spotting, chamfering, and pre-drilling operations. Manufactured from sub-micrograin carbide in grade IC908 with a PVD-applied TiAlN coating, the tip delivers strong wear resistance and thermal stability across a wide range of workpiece materials. Right-hand cut geometry with 2 flutes provides efficient chip evacuation in production environments.

This milling tip is intended for use in machining applications involving steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials — covering ISO material groups P, M, K, N, S, and H. It threads into compatible Multimaster MM ECD shanks and extends 15.00mm (0.5906 inch) from the holder. The functional length is 0.5910 inch. Typical users are CNC machinists, toolroom technicians, and production shop operators working with modular tooling systems. The ANSI standard designation applies.

Key Features

• 8.00mm cutting diameter with 90-degree included angle for accurate spotting and chamfering
• IC908 sub-micrograin carbide grade with PVD TiAlN coating for extended tool life in demanding cuts
• 2-flute right-hand geometry supports efficient chip flow in steel, cast iron, and superalloy applications
• Replaceable Multimaster tip design allows quick changeover without removing the shank from the machine
• Covers ISO material groups P, M, K, N, S, and H — broad workpiece material compatibility
• Meets ANSI standards; UNSPSC code 23291601

Compatibility

Designed for use with compatible ISCAR Multimaster MM ECD series modular shank holders that accept the 08X90 insert size. Verify shank interface compatibility before ordering. Minimum order quantity is 2 pieces.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians familiar with modular tooling systems. Ensure the machine spindle is fully stopped and de-energized before changing tips. Use the correct Multimaster torque wrench or key specified for the shank size to seat the tip properly — do not use improvised tools. Inspect the shank interface for chips or damage before threading in a new tip.
