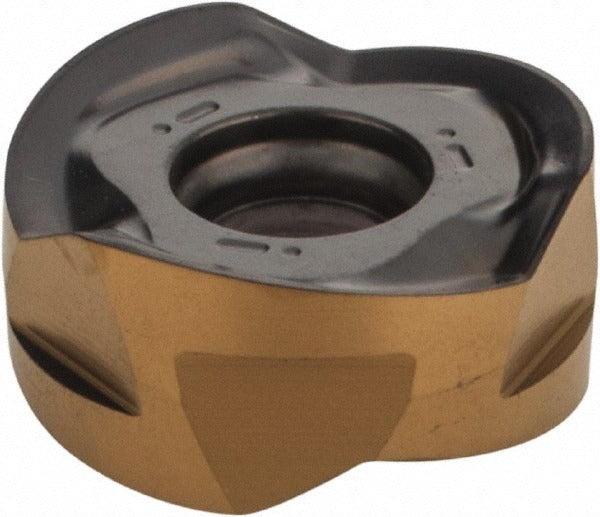

Iscar 5607685 Round Milling Insert IC830 Helido Series

Product Description

The ISCAR 5607685 is a solid carbide round milling insert in the HELIDO series, designed for high-performance indexable milling applications in demanding material categories including steel, stainless steel, superalloys, and titanium. This double-sided insert carries the IC830 manufacturer grade and features an AlTiN plus TiN PVD coating applied through the Sumotec PVD process, which provides heat resistance and extended tool life in difficult cutting conditions. The insert has 6 cutting edges, a negative rake geometry, a T-Land cutting edge style, and a 0.25 inch corner radius. It is held in the cutter body by screw clamping and is right-hand oriented. Licensed machinists and CNC setup technicians are the primary installers of this insert type.

This insert is suited for indexable milling operations on ferrous metals and difficult-to-machine materials in both roughing and semi-finishing passes. The AXT chip breaker geometry supports chip control across the primary workpiece material categories of steel (P), stainless steel (M), and superalloys and titanium (S). The insert fits the H606 FR.50 cutter series. It conforms to ANSI and ISO 13399 standards, with ANSI code H606 RXCU 43-AXT IC830 and ISO code H606 RXCU 43-AXT. The 0.51 inch inscribed circle and 0.255 inch maximum depth of cut make this insert appropriate for moderate radial and axial engagement milling strategies on machining centers and milling machines.

Key Features

• IC830 grade solid carbide with AlTiN plus TiN PVD Sumotec coating for heat and wear resistance in steel and superalloy cutting
• Double-sided insert with 6 cutting edges for extended usable tool life per insert
• Round insert shape (RXCU style) with 0.25 inch corner radius and 360-degree included angle
• AXT chip breaker geometry optimized for steel, stainless steel, superalloys, and titanium
• Negative rake, T-Land cutting edge style for edge strength in difficult materials
• Compliant with ANSI and ISO 13399 standards for insert identification and interchangeability

Compatibility

This insert is designed for use with the H606 FR.50 cutter series. The ANSI code is H606 RXCU 43-AXT IC830 and the ISO code is H606 RXCU 43-AXT. Verify cutter body pocket geometry and screw torque requirements against the H606 series tool holder documentation before installation.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC tooling technician with the machine spindle stopped and all power isolated. Use the appropriate Torx or hex key as specified by the cutter body manufacturer to secure the clamping screw. Do not overtighten the screw beyond the cutter body manufacturer specification. Inspect the pocket seat and clamping screw for wear or damage before seating a new insert.
