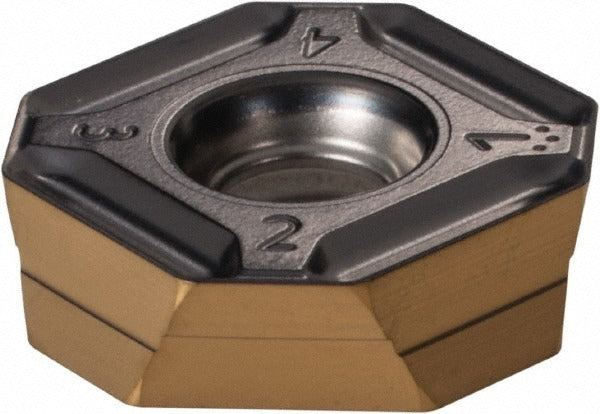

Iscar 5607522 Milling Insert IQ845 Syhu 0704ADN-MM IC808

Product Description

The ISCAR 5607522 is a solid carbide milling insert carrying the ANSI designation IQ845 SYHU 0704ADN-MM IC808. It belongs to the DOVEIQMILL series and is designed for use in IQ845 dovetail-style milling cutters. The insert features a square shape with a neutral hand orientation, a negative rake geometry, and a T-Land cutting edge style. It is coated with a multilayer TiAlN, AlTiN, and TiN stack applied via PVD, classified under ISCAR Sumotec PVD coating technology. IC808 is a submicron carbide grade suited for demanding interrupted and continuous milling operations across a wide range of workpiece materials. Installation is performed by licensed machinists and toolroom professionals.

This insert is engineered for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials, covering ISO material codes P, M, K, S, and H. The MM chip breaker geometry is optimized for medium machining conditions. With a maximum depth of cut of 0.181 inches (4.60 mm) and eight usable cutting edges per insert, it is well suited for face milling, shoulder milling, and slotting applications in both production and jobshop environments. It conforms to ANSI and ISO 13399 standards.

Key Features

• 8 cutting edges per insert for extended tool life and reduced cost per edge
• Submicron IC808 carbide grade with multilayer TiAlN, AlTiN, and TiN PVD coating for high wear resistance
• Square insert shape with 90-degree included angle and 0-degree relief angle for rigid, stable cutting
• MM chip breaker designed for medium milling conditions across steel and difficult-to-machine alloys
• T-Land cutting edge style provides controlled edge strength for interrupted cuts and hard materials
• Conforms to ANSI and ISO 13399 standards for broad toolholder compatibility within the IQ845 system

Compatibility

Designed for use with IQ845 series DOVEIQMILL milling cutters. Compatible with toolholders accepting the SYHU 0704 insert seat configuration. Screw-held clamping method.

Installation Notes

Installation and insert indexing should be performed by a qualified machinist or toolroom technician with the spindle fully stopped and machine power locked out per applicable shop safety procedures. Use the correct torx or hex key specified by the cutter body manufacturer when tightening the clamping screw to avoid seat damage. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Do not use damaged or chipped inserts, as failure during cutting can cause serious injury and workpiece damage.
