Iscar 5607306 Milling Insert IC830 Helido H490 Ankx

Product Description

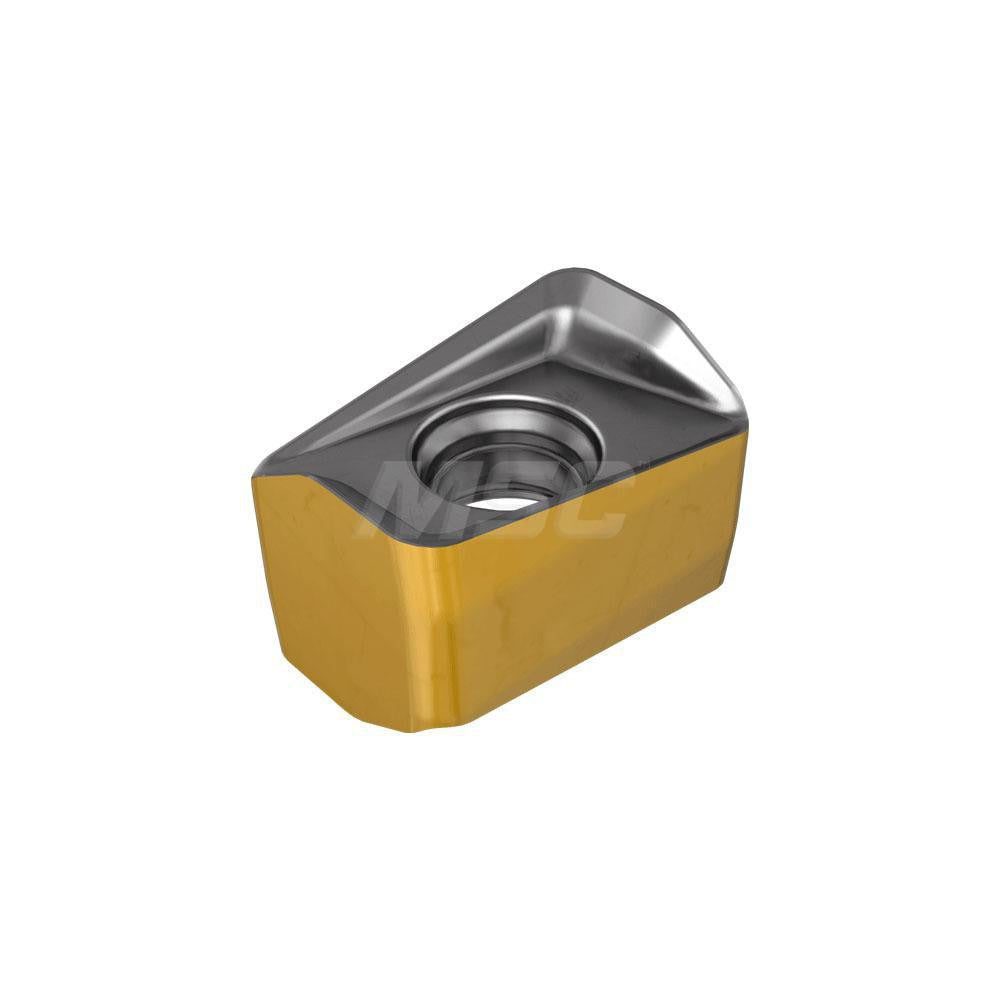

The ISCAR 5607306 is a solid carbide milling insert in the HELIDO series, designed for use in H490 ANK17 cutter bodies. It carries the ANSI designation H490 ANKX 170624PNTR IC830 and is coated with an AlTiN plus TiN multilayer PVD coating under ISCAR's Sumotec classification. The insert features a parallelogram shape with a negative rake angle and a helical cutting edge style. With 4 cutting edges on a double-sided body, it offers a maximum depth of cut of 0.394 inches and a corner radius of 0.0945 inches. The IC830 grade is engineered for demanding cutting operations on steel, stainless steel, superalloys, and titanium.

This insert is suited for milling applications in industrial and production machining environments. It is used by machinists and CNC operators working on ferrous metals, stainless grades, and difficult-to-machine superalloys and titanium alloys. The PNTR chip breaker geometry supports controlled chip formation at typical milling parameters. The right-hand configuration and screw-holding method make it compatible with standard H490 ANK17 tooling platforms. It is appropriate for both roughing and semi-finishing passes where a consistent, reliable cutting edge is required.

Key Features

• IC830 grade solid carbide with AlTiN plus TiN PVD coating for high heat and wear resistance
• Double-sided insert with 4 usable cutting edges, reducing cost per edge
• Helical cutting edge style with PNTR chip breaker for efficient chip control
• Negative rake and 85-degree included angle suited for stable, high-feed milling
• Maximum depth of cut of 0.394 inches with a cutting edge effective length of 0.394 inches
• Right-hand orientation with screw clamping for secure insert holding

Compatibility

Designed for use with H490 ANK17 series cutter bodies. ANSI code H490 ANKX 170624PNTR IC830. Compatible with workpiece materials coded P (Steel), M (Stainless Steel), and S (Superalloys and Titanium). Conforms to ANSI and ISO 13399 standards.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before changing inserts. Use the appropriate Torx or hex key for the clamping screw and ensure the insert seat and pocket are clean and free of chips before seating the insert. Do not mix insert orientations within a single cutter body.
