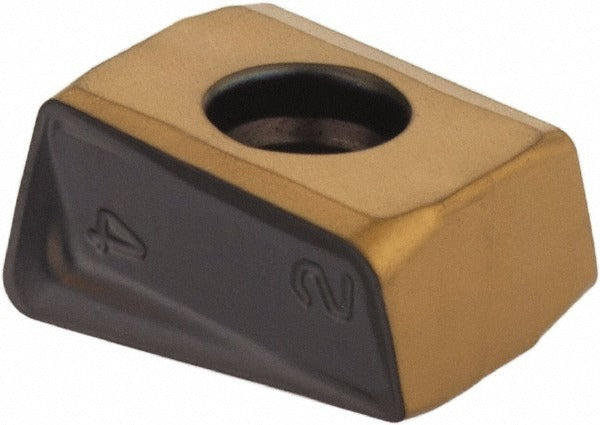

Iscar 5607266 Milling Insert T490 Lnmt 080408PNR IC830 Carbide

Product Description

The ISCAR 5607266 is a solid carbide milling insert carrying the ANSI designation T490 LNMT 080408PNR IC830, designed for high-productivity shoulder and face milling operations. It features a butterfly (LNMT) insert shape with a helical cutting edge style and a negative rake geometry, giving it four usable cutting edges per insert. The IC830 grade uses a Sumotec PVD-applied AlTiN plus TiN coating for thermal resistance and wear performance when cutting ferrous and difficult-to-machine materials. The insert measures 0.3382 inches in effective cutting edge length and 0.2930 inches thick, with a corner radius of 0.0315 inches (1/32 inch). It is held in the cutter body by a screw-clamp method and is designed for right-hand cutting direction.

This insert is suited for milling steel, stainless steel, superalloys, and titanium alloys in both roughing and finishing applications. It belongs to the HELITANG series and is compatible with T490 LNK08 cutter bodies. The PNR chip breaker geometry supports controlled chip formation across a range of depths of cut up to 0.3150 inches (8.00 mm). Typical applications include shoulder milling, slot milling, and ramping in aerospace, energy, and general machining environments where tool life on tough materials is a priority. Licensed machinists and CNC tooling specialists are the primary installers and end users.

Key Features

• IC830 grade with Sumotec PVD AlTiN plus TiN coating for heat and wear resistance on steel and superalloys
• Double-sided insert with 4 cutting edges per insert for extended insert economy
• Helical cutting edge style reduces cutting forces and vibration during milling
• Negative rake, 0-degree relief angle geometry provides strong cutting edge for interrupted cuts
• PNR chip breaker optimized for steel, stainless steel, superalloys, and titanium
• Screw-clamp insert holding method for positive, repeatable seating in the cutter pocket

Compatibility

Compatible with T490 LNK08 series cutter bodies. Conforms to ANSI code T490 LNMT 080408PNR IC830 and ISO 13399 standards. Insert size code 080408.
