Iscar 5606601 Onmu 080608-TN IC810 Milling Insert

Product Description

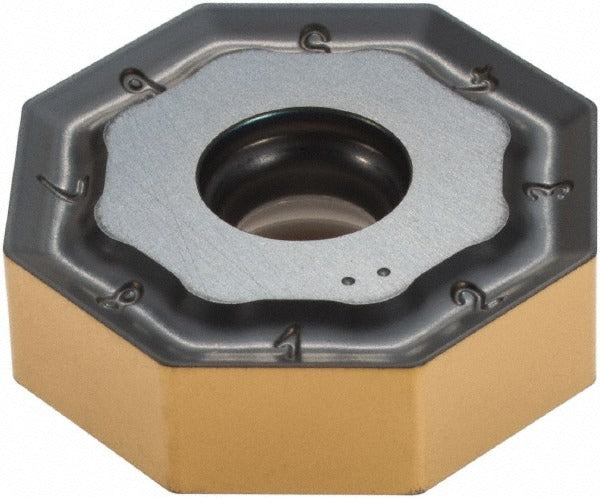

The ISCAR 5606601 is a solid carbide milling insert carrying the ANSI designation ONMU 080608-TN in manufacturer grade IC810. The insert features an octagon shape with a neutral hand orientation and a negative rake geometry at 26 degrees. It is coated with an AlTiCrN and TiN multilayer finish applied via PVD Sumotec process, providing wear resistance in demanding cutting operations. With 16 usable cutting edges on a double-sided body, this insert is suited for face milling and shoulder milling applications. It is installed by machinists and toolroom professionals in CNC machining centers wherever tool economy and edge life on ferrous materials are priorities.

This insert is designed for milling steel and cast iron workpiece materials, corresponding to ISO material codes P and K. It fits within the Series 16MILL platform and is compatible with the F45NM and F45WG cutter bodies. The T-Land cutting edge style and 0-degree relief angle support stable, productive cuts on both roughing and semi-finishing passes. Maximum depth of cut is 5.50 mm (0.217 inches), making it appropriate for moderate stock removal in production environments. It is held in the cutter body by a screw clamping method.

Key Features

• 16 cutting edges per insert on a double-sided octagon body for maximum tool economy
• IC810 grade with AlTiCrN and TiN PVD Sumotec coating for extended tool life on steel and cast iron
• Negative rake at 26 degrees with T-Land edge style for stable, controlled cutting action
• 0.0315 inch (0.80 mm) corner radius minimizes workpiece stress at cut entry
• Neutral hand design allows use in multiple cutter orientations
• Screw-clamp insert holding for secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with ISCAR F45NM and F45WG cutter body series in the 16MILL platform. Conforms to ANSI designation ONMU 080608-TN IC810 and ISO 13399 standard ONMU 080608-TN.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. De-energize and lock out the spindle before seating or replacing inserts. Use the correct torx or hex key specified for the cutter body screw to avoid stripping the clamping screw; do not over-torque. Inspect the insert pocket and seating surface for chips or debris before placing a new insert to ensure full contact and accurate edge positioning.
