Iscar 5606473 Milling Insert IC830 Carbide Altin

Product Description

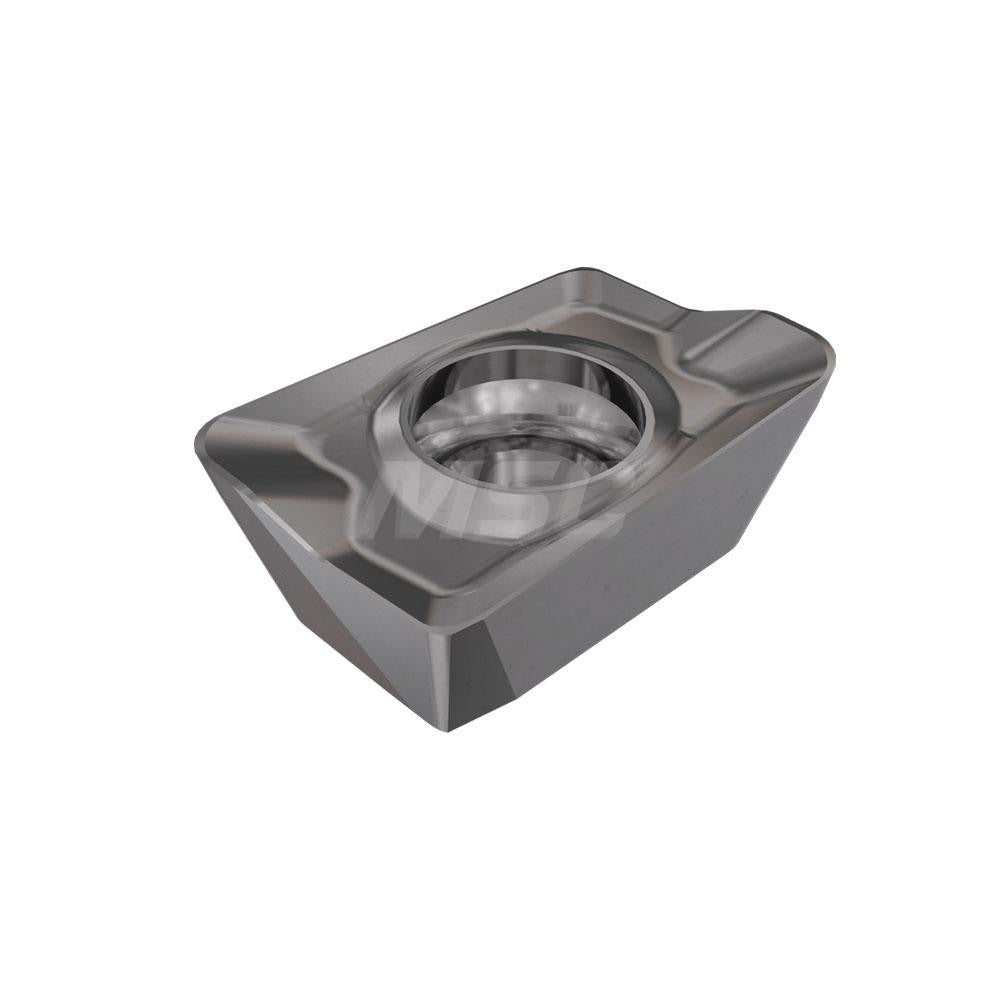

The ISCAR 5606473 is a solid carbide milling insert carrying the ANSI designation ADKT 150564R-HM in the IC830 grade. It features a parallelogram insert shape with an 85-degree included angle, a positive 20-degree rake angle, and a honed cutting edge style. The dual-layer AlTiN and TiN coating is applied via PVD under ISCAR Sumotec classification, delivering heat and wear resistance suited to high-productivity milling. Two cutting edges are available per insert. It is held in the cutter body by a screw-clamp method and is designed for right-hand cutting. The insert belongs to the HELIMILL series and is intended for installation by machinists and tooling technicians on CNC milling platforms.

This insert is engineered for milling steel, stainless steel, superalloys, and titanium — workpiece material codes P, M, and S. The HM chip breaker geometry supports efficient chip evacuation in these materials at moderate to aggressive depths of cut up to 0.512 inches (13.20 mm). The positive rake design reduces cutting forces, which is advantageous when machining heat-resistant alloys and difficult stainless grades. Single-sided construction keeps the insert seated reliably under interrupted and continuous milling conditions.

Key Features

• IC830 grade solid carbide with AlTiN and TiN PVD Sumotec coating for extended tool life in steel and superalloy applications
• Positive 20-degree rake angle and honed cutting edge reduce cutting forces and edge micro-chipping
• HM chip breaker optimized for steel, stainless steel, and titanium workpiece materials
• Maximum depth of cut of 0.512 inches (13.20 mm) with a 0.520-inch effective cutting edge length
• Corner radius of 0.2441 inches (6.20 mm) provides surface finish stability at programmed feed rates
• Right-hand, screw-held, single-sided insert for repeatable indexing and secure clamping

Compatibility

Compatible with cutter series ETS, FTS, ADK, and E90 within the HELIMILL platform. Conforms to ANSI and ISO 13399 standards. ANSI code: ADKT 150564R-HM IC830. ISO code: ADKT 150564R-HM.

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque driver for the clamping screw — refer to the cutter body documentation for the specified torque value; do not overtighten by hand estimation. Inspect the insert pocket seat and clamping screw for wear or debris before seating a new insert.
