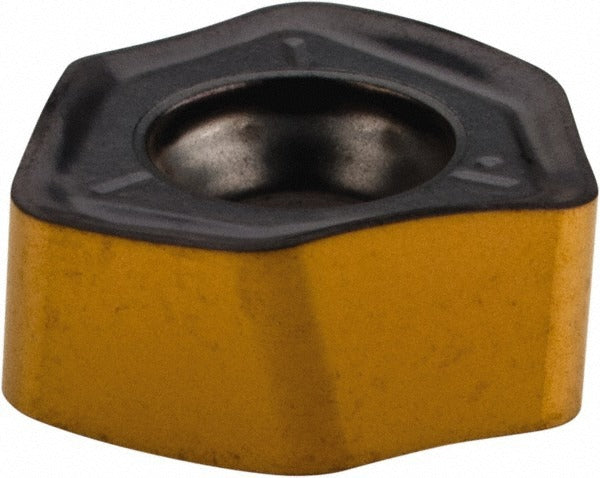

Iscar 5606349 Milling Insert IC830 Trigon Carbide

Product Description

The ISCAR 5606349 is a solid carbide milling insert carrying the ANSI designation H600 WXCU 05T312T IC830. It belongs to the HELI6FEED series and is engineered for high-feed milling operations in steel, stainless steel, superalloys, and titanium. The insert features a trigon (80-degree included angle) WXCU style body with a negative rake geometry and a T-Land cutting edge style. It is finished with an AlTiN and TiN dual-layer coating applied via PVD process under ISCAR Sumotec classification, providing thermal resistance and wear protection. Six usable cutting edges and a double-sided design maximize tool life per insert.

This insert is suited for face milling and high-feed roughing applications on machining centers handling P, M, and S material groups - primarily carbon and alloy steels, austenitic and martensitic stainless steels, and difficult-to-machine superalloys and titanium alloys. It is held in place by a screw-clamp method and is designed for right-hand cutting. Compatible cutter bodies include the FWX and EWX series. Typical applications include production machining environments where metal removal rate and insert economy are both priorities.

Key Features

• Trigon insert shape with 80-degree included angle and negative rake for stable cutting action
• Six cutting edges on a double-sided insert body for extended economy per piece
• AlTiN and TiN PVD coating (Sumotec classification) for heat and wear resistance in hard-to-machine materials
• T-Land cutting edge style reduces chipping when entering stainless steel, superalloys, and titanium
• Maximum depth of cut and effective cutting edge length both at 0.2165 inches
• Screw-hold mounting method for secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with FWX and EWX series cutter bodies. Conforms to ANSI code H600 WXCU 05T312T IC830 and ISO 13399 standard H600 WXCU 05T312T. Insert size code is 05T312.

Installation Notes

Installation is performed by a machinist or toolroom technician using the appropriate torx or hex key to seat the clamping screw - ensure the spindle is fully stopped and locked out before handling inserts. Seat the insert firmly against the pocket walls and face before tightening the screw to avoid micro-movement under cutting loads. Inspect the pocket seating surface for chips or debris before each insert change, as contamination can cause premature edge failure or insert breakage.
