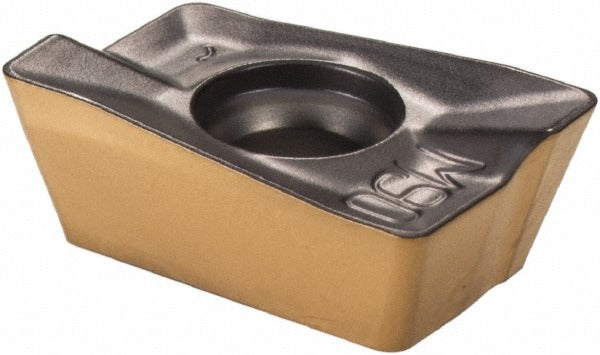

Iscar 5606328 Milling Insert HM90 Adkt 1505PDR IC808

Product Description

The ISCAR 5606328 is a solid carbide milling insert designed for use in HM90-15 series milling cutters as part of the HELI2000 system. Carrying the IC808 manufacturer grade, this insert features a multilayer Sumotec PVD coating — TiAlN, AlTiN, and TiN — applied to a submicron carbide substrate for wear resistance and extended tool life in demanding cutting applications. The insert style is ADKT with a parallelogram shape, a positive rake geometry, and a honed cutting edge. It provides two cutting edges per insert and is held in the cutter body by a screw clamp method. Thickness is 0.23 inches and the inscribed circle diameter is 0.38 inches.

This insert is suited for face milling, shoulder milling, and general-purpose metal removal across a range of workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The PDR chip breaker geometry supports controlled chip evacuation in these applications. The maximum depth of cut reaches 0.472 inches (14.50 mm), making this insert appropriate for moderate to aggressive material removal on machining centers and manual mills in both production shop and job shop environments. Installation is right-hand oriented and the insert is single-sided.

Key Features

• IC808 grade submicron solid carbide substrate with Sumotec PVD multilayer coating (TiAlN, AlTiN, TiN)
• Positive rake ADKT parallelogram insert style with honed cutting edge for clean entry and reduced cutting forces
• PDR chip breaker for effective chip control across steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Two cutting edges per insert, screw-held, right-hand orientation
• Maximum depth of cut: 0.472 inches (14.50 mm); effective cutting edge length: 0.571 inches
• Corner radius: 1/32 inch (0.0315 inches / 0.79 mm)
• Meets ANSI and ISO 13399 standards

Compatibility

Designed for use with HM90-15 series cutter bodies (cutter series compatibility: HM90-15) as part of the ISCAR HELI2000 milling system. ANSI code: HM90 ADKT 1505PDR IC808. ISO code: HM90 ADKT 1505PDR.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. The machine spindle must be fully stopped and locked out before changing inserts. Use the appropriate torx or hex key to secure the clamping screw to the cutter body seat; do not overtighten, as this can damage the insert or seat. Inspect the cutter body pocket for chips, debris, or seat damage before seating the new insert.
