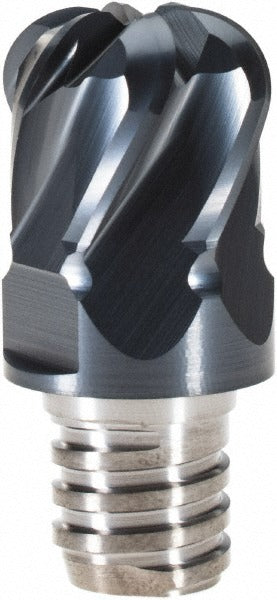

Iscar 5604524 Milling Tip 0.625in 6 Flute Carbide IC908

Product Description

The ISCAR 5604524 is an end replaceable milling tip engineered for the Multimaster (MM ETR) modular tooling system. Built from sub-micrograin carbide with an IC908 manufacturer grade, it features a TiAlN coating applied via PVD process for extended tool life in demanding cutting environments. The tip carries a 0.625 inch cutting width, a 0.350 inch maximum depth of cut, and a 6-flute right-hand configuration with a 30-degree helix angle. Overall functional length is 0.807 inches. The toroidal tip style and 90-degree lead angle make this a practical choice for face milling and shoulder milling operations where consistent performance across a range of workpiece materials is required.

This milling tip is suited for machining steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material groups P, M, K, N, S, and H. It is typically installed in CNC machining centers by machinists or tooling technicians running the ISCAR Multimaster modular end mill platform. The replaceable tip design reduces changeover time by allowing worn cutting ends to be swapped without removing the holder from the machine.

Key Features

• Toroidal milling tip style in the MM ETR series for modular Multimaster tooling
• Sub-micrograin carbide substrate with IC908 grade for high wear resistance
• TiAlN coating via PVD process for thermal stability and extended cutting life
• 6 flutes with a 30-degree helix angle for efficient chip evacuation
• 0.200 inch corner radius for reduced cutting force and improved surface finish
• Covers six ISO workpiece material groups including superalloys and hard materials
• ANSI standard compliant; right-hand cut, no chipbreaker

Compatibility

Designed as a replaceable cutting tip for ISCAR Multimaster MM ETR series modular milling holders accepting the .625A35R200 insert size.

Installation Notes

Installation of replaceable milling tips should be performed by a qualified machinist or tooling technician with the machine fully powered down and the spindle locked. Use the appropriate ISCAR Multimaster torque key or coupling tool as specified by the toolholder manufacturer — do not use impact tools or improvised wrenches. Inspect the mating coupling threads and seating surface for chips or damage before installing the new tip. Confirm tool runout with a dial indicator before resuming full cutting operations.
