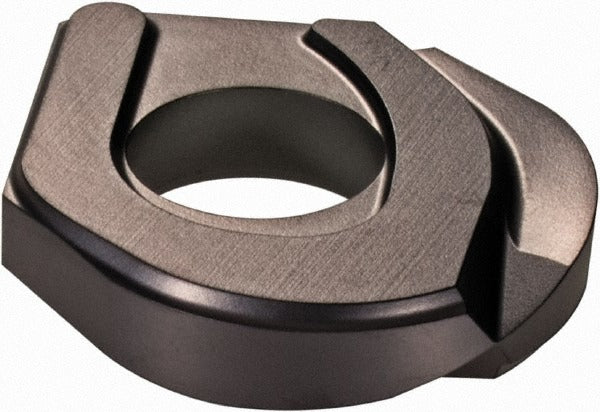

Iscar 5604421 Ball Nose Milling Insert IC908 0.75 in

Product Description

The ISCAR 5604421 is a solid carbide ball nose milling insert in the BALLPLUS series, designed for high-performance milling operations across a wide range of workpiece materials. Carrying the HCR D.75-QF geometry with an IC908 manufacturer grade, this insert features a TiAlN PVD coating applied over a submicron carbide substrate. It measures 0.75 inches in inscribed circle diameter and 0.183 inches thick, with a 0.375-inch corner radius and a maximum depth of cut of 0.579 inches. The QF chip breaker geometry and positive rake angle promote efficient chip evacuation and reduced cutting forces. Installation and use are intended for qualified machinists and tooling technicians working in professional CNC milling environments.

This insert is suited for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The IC908 grade with PVD TiAlN coating makes it particularly capable in demanding applications involving heat-resistant alloys and hardened workpieces. It is a right-hand, single-sided insert held by screw, compatible with HCM cutter bodies. The BALLPLUS series is commonly used in 3-axis and multi-axis CNC machining centers for profiling, contouring, and finishing passes where a ball nose profile is required.

Key Features

• IC908 submicron solid carbide grade with TiAlN PVD coating for wear resistance in tough materials
• Ball nose HCR geometry with 0.375-inch corner radius for profiling and contouring cuts
• QF chip breaker with positive rake for reduced cutting forces and improved chip control
• Maximum depth of cut of 0.579 inches with a cutting edge effective length of 0.579 inches
• Two cutting edges, right-hand orientation, screw-held mounting
• Conforms to ANSI and ISO 13399 standards with ANSI code HCR D.75-QF IC908

Compatibility

Designed for use with HCM series cutter bodies. Compatible cutter series designation is HCM as stated by the manufacturer. Verify cutter body pocket specifications against insert dimensions before installation.

Installation Notes

This insert is installed and replaced by qualified machinists or tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the correct torx or hex key for the clamping screw and tighten to the cutter body manufacturer's specified procedure. Inspect the insert pocket seating surface for damage or debris before seating the new insert.
