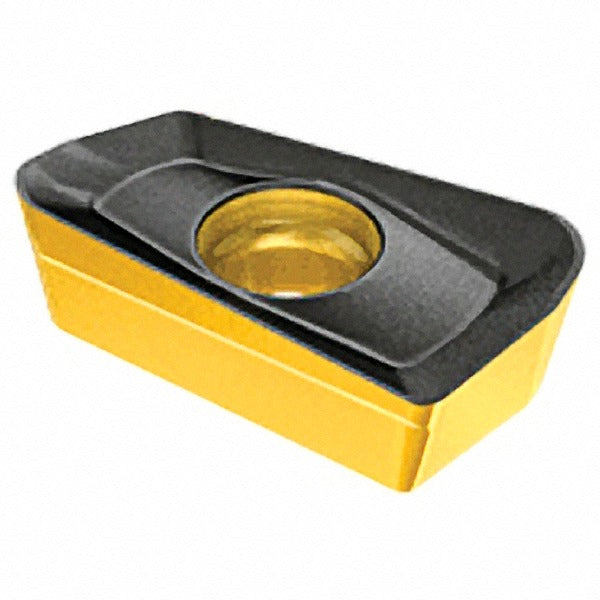

Iscar 5604343 Hp Anct 070204PN-R IC928 Milling Insert

Product Description

The ISCAR 5604343 is a solid carbide milling insert carrying the manufacturer designation HP ANCT 070204PN-R in grade IC928. It is a single-sided, parallelogram-shaped insert with an 85-degree included angle and a right-hand cutting orientation. The TiAlN coating is applied via PVD process, delivering strong wear resistance and thermal stability during high-speed milling operations. The honed cutting edge with a negative rake angle and a chip breaker style R provides controlled chip formation. With two cutting edges and a corner radius of 0.0157 inches, this insert is suited for precision stock removal in demanding milling applications across the metalworking and machining trades.

This insert is designed for milling steel, stainless steel, superalloys, and titanium workpieces. It belongs to the HELIPLUS series and is compatible with cutter bodies HP-ANK-07 and HP .90-07. The maximum depth of cut reaches 0.3030 inches, and the effective cutting edge length is 0.3030 inches. It is held in the cutter body by a screw-type clamping method. Machinists and CNC operators working in job shops, aerospace, and general metalworking will find this insert applicable to a wide range of milling operations on challenging materials.

Key Features

• IC928 grade TiAlN PVD-coated solid carbide for high wear and heat resistance
• Parallelogram insert shape with 85-degree included angle and right-hand orientation
• Two cutting edges with honed edge style and negative rake for controlled cutting action
• Corner radius of 0.0157 inches for defined edge geometry
• Maximum depth of cut of 0.3030 inches with effective cutting edge length of 0.3030 inches
• Chip breaker style R suited for steel, stainless steel, superalloys, and titanium

Compatibility

Compatible with HELIPLUS series cutter bodies HP-ANK-07 and HP .90-07. Conforms to ANSI designation HP ANCT 070204PN-R IC928 and ISO code HP ANCT 070204PN-R per ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing inserts. Use the appropriate torx or hex key to secure the clamping screw to the manufacturer-recommended procedure without over-torquing the insert seat. Inspect the cutter pocket and seating surface for chips or debris before seating the new insert to maintain proper edge geometry and runout.
