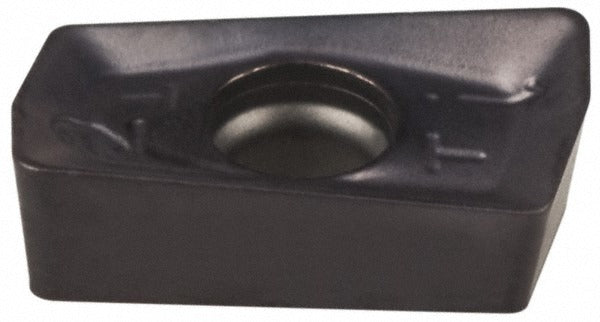

Iscar 5604340 Milling Insert Hp Ankt 0702PNTR IC928

Product Description

The ISCAR 5604340 is a solid carbide milling insert carrying the ANSI designation HP ANKT 0702PNTR IC928, designed for use in high-productivity face and shoulder milling operations. This single-sided, parallelogram-shaped insert features a TiAlN PVD coating applied with the IC928 grade, which is engineered for cutting steel, stainless steel, superalloys, and titanium. It delivers a maximum depth of cut of 0.303 inches, a T-Land cutting edge style, and a negative rake geometry. Two cutting edges per insert are available. The insert is held in the cutter body by a screw clamp. Licensed machinists and CNC mill operators typically install and index these inserts during tooling changes.

This insert belongs to the ISCAR HELIPLUS series and is compatible with HP ANK-07 and HP.90-07 cutter bodies. It is suited for both roughing and finishing passes on steel and stainless steel workpieces, as well as difficult-to-machine superalloys and titanium alloys in production machining environments. The insert size code is 0702, with a right-hand cutting hand. Applicable material grade classifications are C1, C2, C5, and C6. Primary workpiece material codes are P, M, and S per ISO designation.

Key Features

• IC928 grade TiAlN PVD coating optimized for steel, stainless steel, superalloys, and titanium
• HELIPLUS series insert — compatible with HP ANK-07 and HP.90-07 cutter bodies
• Maximum depth of cut: 0.303 inches (7.50 mm)
• T-Land cutting edge style with negative rake for stable chip formation
• Two cutting edges per insert, single-sided, right-hand orientation
• PNTR chip breaker geometry; screw-held insert mounting
• Complies with ANSI and ISO 13399 standards

Compatibility

Designed for use with ISCAR HELIPLUS cutter bodies in the HP ANK-07 and HP.90-07 series. Insert size code 0702. Cutter series compatibility is confirmed for HP ANK-07 and HP.90-07 per manufacturer specifications.

Installation Notes

Installation and indexing of milling inserts should be performed by a qualified machinist or CNC tooling technician with the machine powered down and in a safe, locked-out state. Use the correct torque wrench and insert screw specified by the cutter body manufacturer — do not over-torque the clamping screw. Inspect the insert pocket and seating surface for chips or debris before seating the new insert. Follow the cutter body manufacturer guidelines for insert orientation and cutting direction before resuming operation.
