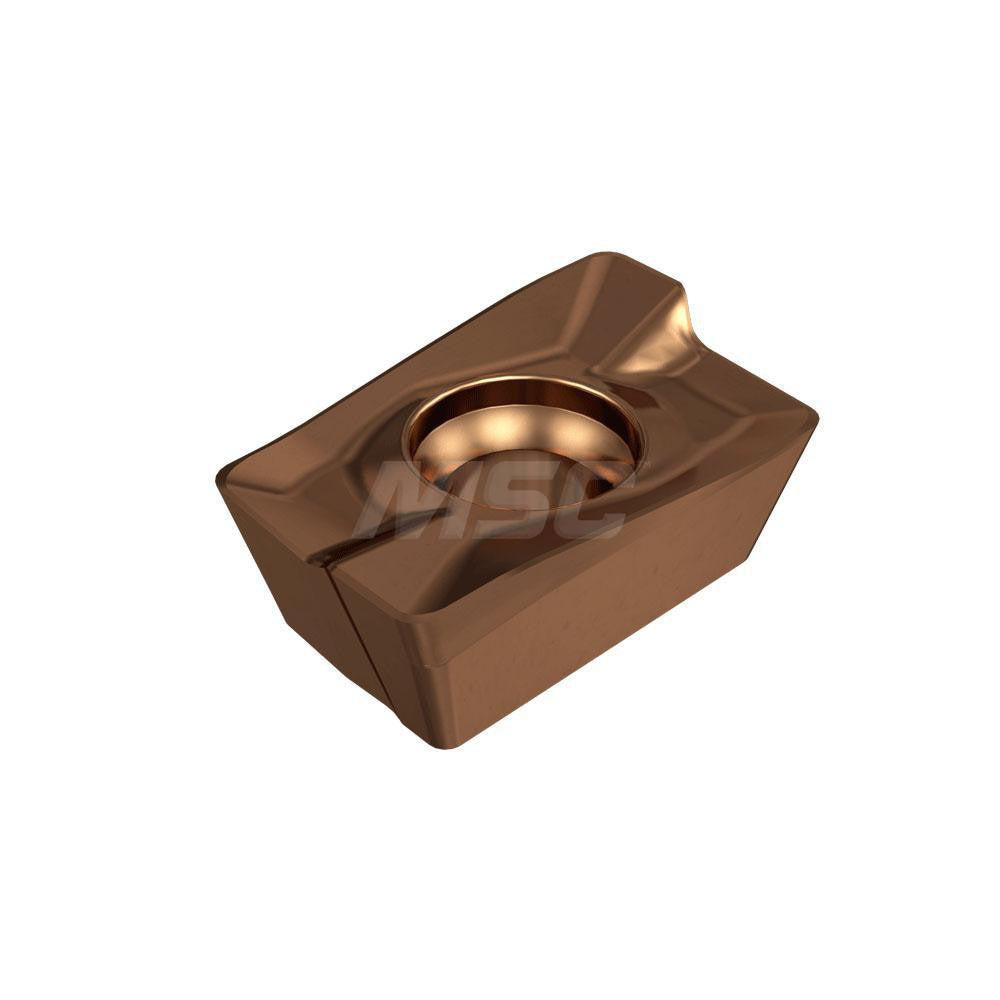

Iscar 5603480 Milling Insert Adkt IC908 Tialn Carbide

Product Description

The ISCAR 5603480 is a solid carbide milling insert in the HM90 ADKT 150564-PDR configuration, designed for high-performance face and shoulder milling in demanding industrial applications. This single-sided, right-hand insert features a parallelogram shape with an 85-degree included angle, a positive rake geometry, and a honed cutting edge for clean, controlled chip formation. The IC908 submicron carbide grade with PVD-applied TiAlN coating delivers excellent wear resistance and heat stability. With 2 cutting edges, a maximum depth of cut of 0.472 inches (12.00 mm), and a PDR chip breaker, it is suited for machinists and CNC operators working across a wide range of workpiece materials.

This insert is engineered for use in the HELI2000 series HM90-15 cutter bodies. It is held in place by screw clamping and is compatible with steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It is appropriate for both roughing and finishing passes where positive rake and a robust carbide grade are required. Machine shops running production or job-shop milling operations on CNC machining centers will find this insert a direct fit in HM90-15 tooling systems.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for heat and wear resistance
• Positive rake geometry with honed cutting edge for reduced cutting forces
• PDR chip breaker supports steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Maximum depth of cut: 0.472 inches (12.00 mm)
• 2 cutting edges per insert - single-sided, right-hand orientation
• Screw-held insert for secure, repeatable seating in compatible cutter bodies

Compatibility

Designed for use in ISCAR HM90-15 series cutter bodies. ANSI code: HM90 ADKT 150564PDR IC908. ISO code: HM90 ADKT 150564PDR. Conforms to ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the cutter body is removed from the spindle and all machine power is off before seating or replacing inserts. Use the manufacturer-specified torx or hex key to tighten the clamping screw - do not overtighten. Inspect the insert pocket and clamping screw for debris or wear before installing a new insert.
