Iscar 5602563 Milling Insert Qomt 060208TN-HQ IC910

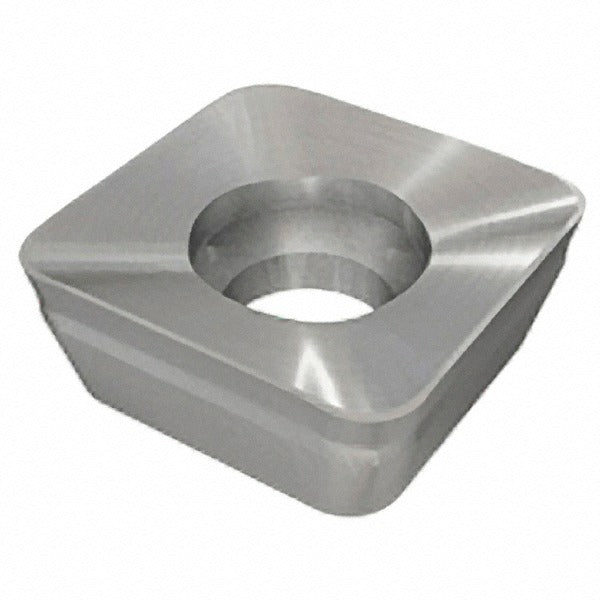

Product Description

The ISCAR 5602563 is a solid carbide milling insert carrying the manufacturer designation QOMT 060208TN-HQ in grade IC910. The insert features a square shape with a 90-degree included angle, four neutral-hand cutting edges, and a T-Land cutting edge style with a positive rake geometry. An AlTiN coating applied via PVD process provides thermal and wear resistance suited to demanding milling operations. The inscribed circle measures 0.2430 inches, thickness is 0.1010 inches, and each cutting edge has an effective length of 0.2110 inches. The corner radius is 0.0315 inches (1/32 inch). Machinists and CNC operators working in job shop or production environments install this insert as part of the QUAD2000 series tooling platform.

This insert is designed for milling steel and cast iron workpieces, covering primary material codes P and K. The HQ chip breaker geometry supports controlled chip formation across a range of cutting conditions. It is held in the cutter body by a screw and is a single-sided insert, delivering up to four index positions before replacement. Maximum depth of cut is 0.1570 inches. Typical applications include face milling, shoulder milling, and general-purpose material removal on CNC machining centers where consistent edge geometry and predictable wear behavior are required.

Key Features

• Solid carbide substrate with IC910 grade and AlTiN PVD coating for extended tool life in steel and cast iron
• Square insert shape with 90-degree included angle and T-Land cutting edge style
• Four neutral-hand cutting edges per insert — maximizes value per insert
• Positive rake geometry reduces cutting forces and heat generation at the edge
• HQ chip breaker promotes reliable chip evacuation during milling operations
• Compatible with QUAD2000 series cutter bodies including ETS, FDN, SDN, E45X, and E90X platforms

Compatibility

Designed for use in ISCAR QUAD2000 series cutter bodies. Confirmed compatible cutter series: ETS, FDN, SDN, E45X, and E90X. Conforms to ANSI code QOMT 060208TN-HQ IC910 and ISO 13399 standards.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. The insert is screw-held; use the appropriate torx or hex key driver specified by the cutter body documentation to seat the insert securely without over-torquing the clamping screw. Inspect the insert pocket and seating surfaces for chips or debris before installation to ensure proper edge alignment.
