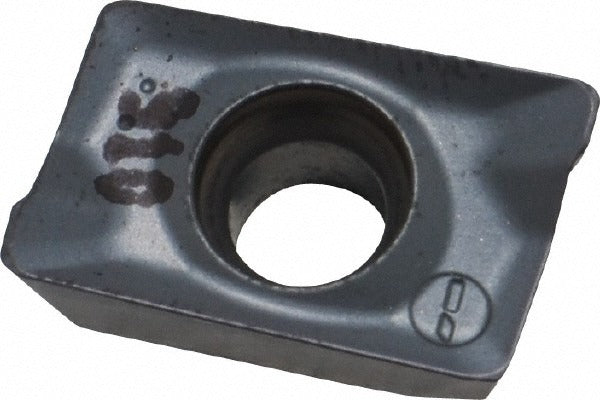

Iscar 5601900 Milling Insert IC910 Altin Helimill

Product Description

The ISCAR 5601900 is a solid carbide milling insert designed for high-productivity face and shoulder milling operations. Cataloged under the ANSI code ADKT 1505PDR-HM IC910, this right-hand, single-sided insert features a parallelogram shape with an 85-degree included angle and a positive rake geometry. The IC910 grade substrate is finished with an AlTiN PVD coating, providing thermal resistance and wear performance in steel and cast iron applications. The honed cutting edge style and HM chip breaker geometry help manage chip flow at moderate to aggressive feed rates. Each insert delivers 2 cutting edges per unit.

This insert is intended for use in HELIMILL-platform milling cutters compatible with the ETS, FTS, ADK, and E90 cutter series. It is suited for roughing and semi-finishing operations in steel and cast iron workpieces, covering material grades C2, C3, and C6. Typical installation environments include CNC machining centers in job shop and production settings. The screw-clamping holding method ensures secure seating in the pocket throughout the cut. Maximum depth of cut reaches 0.472 inches (12.00 mm).

Key Features

• IC910 grade with AlTiN PVD coating for steel and cast iron cutting
• Positive rake geometry with HM chip breaker for controlled chip evacuation
• 2 cutting edges per insert — single-sided design
• Maximum depth of cut: 0.472 inches (12.00 mm)
• Screw-clamp insert holding method for rigid pocket seating
• Meets ANSI and ISO 13399 standards

Compatibility

Compatible with HELIMILL cutter series including ETS, FTS, ADK, and E90 platforms. Verified compatible inserts reference ANSI code ADKT 1505PDR-HM IC910 and ISO code ADKT 1505PDR-HM.

Installation Notes

Insert replacement and indexing should be performed by a qualified machinist or tooling technician with the spindle powered down and the machine in a safe, locked-out state. Use the correct Torx or hex key to the tool manufacturer's specified seating procedure when clamping the screw-lock insert. Inspect the pocket seat and clamping screw for wear or damage before seating a new insert. Do not exceed the maximum depth of cut rating for the cutter body in use.
