Iscar 5601704 Milling Insert Adkr 150504PDR-HM IC328

Product Description

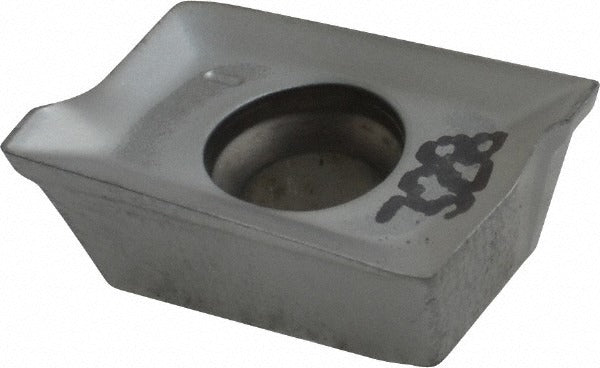

The ISCAR 5601704 is a solid carbide milling insert carrying the manufacturer designation ADKR 150504PDR-HM in grade IC328. It is a parallelogram-shaped, single-sided, right-hand insert with a positive rake geometry and a TiCN coating applied by PVD process. The insert measures 0.6420 inches in length, 0.3780 inches wide (inscribed circle), and 0.2220 inches thick, with a corner radius of 0.0157 inches (1/64 inch). Cutting edge style is honed, with two cutting edges per insert. Maximum depth of cut is 0.4720 inches. The insert is held by screw and is designed for use in milling operations on steel, stainless steel, superalloys, and titanium.

This insert is part of the HELIMILL series and is compatible with HM90-15 cutter bodies. It is suited for milling applications in both production and job-shop environments where a reliable, coated carbide insert is required for work on ferrous and difficult-to-machine materials. The insert size code is 150504, with an ANSI code of ADKR 150504PDR-HM IC328 and an ISO code of ADKR 150504PDR-HM. It conforms to ANSI and ISO 13399 standards. This insert is typically installed by machinists and tooling technicians on milling machines and machining centers.

Key Features

• TiCN coating via PVD process for wear resistance on steel, stainless steel, superalloys, and titanium
• Positive rake geometry with honed cutting edge for reduced cutting forces
• Two cutting edges per insert, single-sided configuration
• Corner radius of 0.0157 inches provides controlled surface finish at the tool tip
• Maximum depth of cut of 0.4720 inches with effective cutting edge length of 0.5590 inches
• Screw-held insert design for secure clamping in compatible toolholders

Compatibility

Designed for use with HELIMILL HM90-15 series cutter bodies. Cutter series compatibility is confirmed for HM90-15. Insert size code 150504. Conforms to ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by machinists or tooling technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified torque; do not overtighten, as this can fracture the insert. Inspect the insert pocket and seating surface for chips or debris before installation to ensure proper seating and runout.
