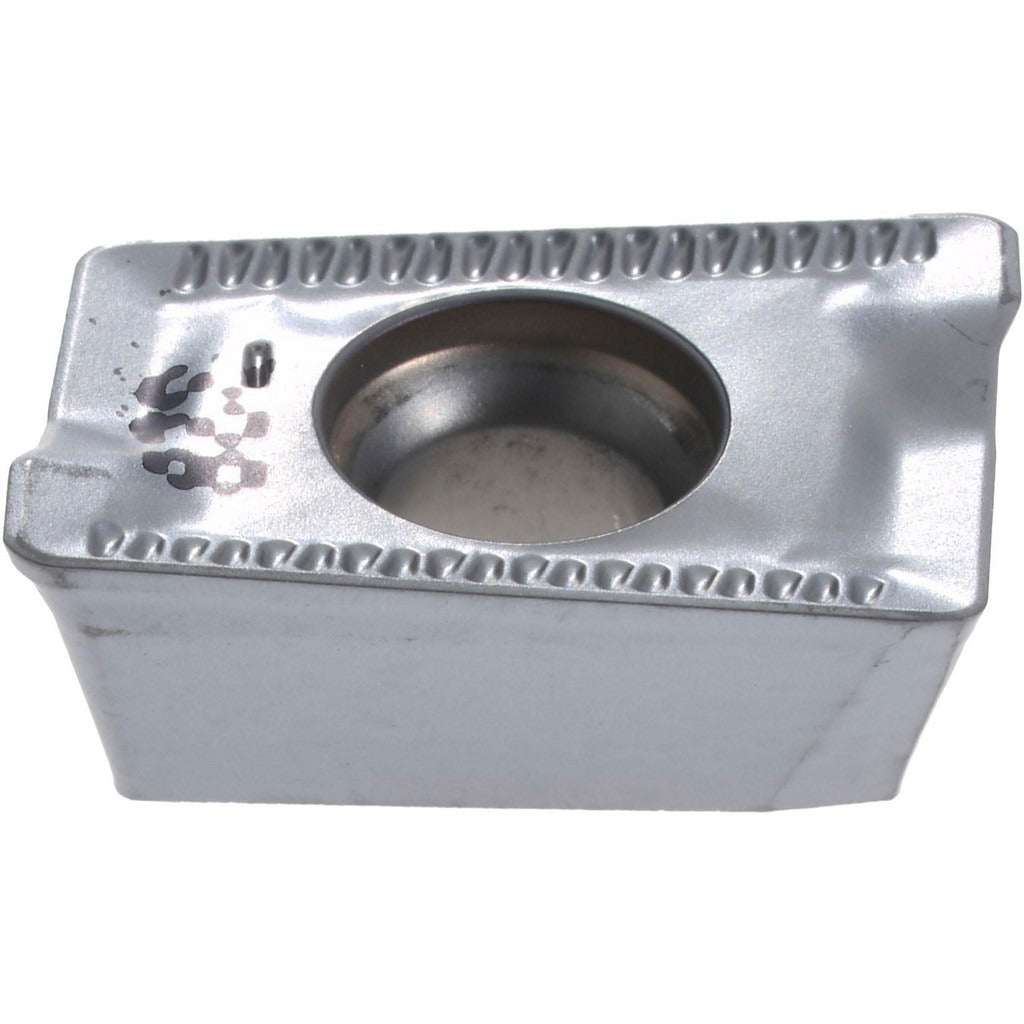

Iscar 5601339 Milling Insert Adkt 1505PDTR-76 IC328

Product Description

The ISCAR 5601339 is a solid carbide milling insert carrying ANSI and ISO designation ADKT 1505PDTR-76 in manufacturer grade IC328. It is a single-sided, right-hand parallelogram-style insert designed for use in helical milling cutter bodies. The TiCN coating is applied via PVD process, providing wear resistance suited to interrupted and continuous cuts. Key dimensional values include an inscribed circle of 0.376 inches, a thickness of 0.222 inches, and a cutting edge effective length of 0.547 inches. Maximum depth of cut reaches 0.472 inches. The insert features a positive rake geometry with a T-Land cutting edge style and a 1.00 mm corner radius, balancing edge strength with chip evacuation in demanding milling operations.

This insert is intended for face milling, shoulder milling, and helical interpolation applications on machining centers and CNC milling platforms. It is engineered for cutting steel, stainless steel, superalloys, and titanium — material application codes P, M, and S — making it a practical choice in aerospace, energy, and general metalworking production environments. The chip breaker designation is 76. The insert is held in the cutter body by a screw-type clamping method, which is standard practice in HELIMILL-platform tooling. It is compatible with ISCAR cutter series ETS, FTS, ADK, and E90. Installation and use are performed by CNC machinists and tooling specialists in production machine shop settings.

Key Features

• TiCN coating applied by PVD process for extended tool life in steel and stainless applications
• Positive rake geometry with T-Land cutting edge style reduces cutting forces and protects the edge
• 1.00 mm corner radius provides a balance between surface finish quality and edge integrity
• Maximum depth of cut of 0.472 inches supports aggressive material removal rates
• Two cutting edges per insert; single-sided design with right-hand orientation
• Screw-held clamping method ensures repeatable seating in compatible cutter bodies

Compatibility

Compatible with ISCAR HELIMILL cutter series ETS, FTS, ADK, and E90. Conforms to ANSI and ISO 13399 standards. Suitable for insert size code 1505 seat pockets. Material grades C2, C3, C5, and C6 are applicable per standard classification.

Installation Notes

Installation is performed by qualified CNC machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before seating or removing inserts. Use the correct torque driver for the cutter body screw to avoid over-torquing the clamping screw, which can damage the insert pocket. Inspect the pocket seat and clamping screw for wear or debris before installing a new insert to ensure proper seating and runout.
