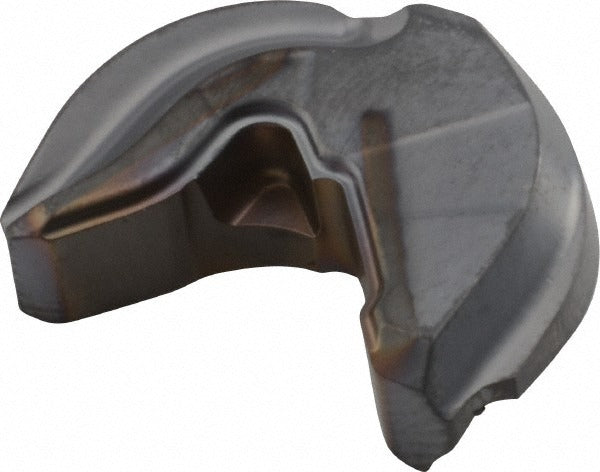

Iscar 5601321 Milling Insert Cr D.75-QF IC328 Carbide

Product Description

The ISCAR 5601321 is a solid carbide milling insert designed for high-performance material removal in CNC milling applications. Manufactured to the CR D.75-QF IC328 specification, this ball nose insert features a 0.75 inch inscribed circle, a 0.375 inch corner radius, and a TiCN coating applied via PVD process. The IC328 grade and QF chip breaker geometry are engineered for cutting steel, stainless steel, superalloys, and titanium. With a positive rake angle and honed cutting edge style, the insert promotes clean chip flow and reduced cutting forces. Installation is handled by a screw-hold method on compatible CM series toolholders.

This insert is suited for milling operations in aerospace, die and mold, and general machining environments where difficult-to-machine materials are common. It is intended for use by machinists and CNC operators running ball nose end mill bodies in the ISCAR CM cutter series. The right-hand, single-sided design provides two cutting edges per insert. Maximum depth of cut is 0.500 inches, and the cutting edge effective length is 0.375 inches, making it appropriate for profiling, contouring, and semi-finish milling passes on hardened and high-temperature alloy workpieces.

Key Features

• IC328 grade solid carbide with TiCN PVD coating for wear resistance on steel and superalloys
• Ball nose geometry with 0.375 inch corner radius for contouring and profiling cuts
• QF chip breaker designed for positive rake cutting action and efficient chip evacuation
• Two cutting edges per insert, single-sided, right-hand orientation
• Screw-clamp holding method compatible with ISCAR CM series milling bodies
• Meets ANSI and ISO 13399 standards with honed cutting edge style

Compatibility

Designed for use with ISCAR CM series milling cutter bodies. ANSI code CR D.75-QF IC328 and ISO code CR D.75-QF confirm fitment. Inscribed circle range of 0.700 to 1.000 inches applies to compatible toolholder seats.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Use the correct torx or hex key to seat the clamping screw to the toolholder manufacturer specification and inspect the insert pocket for debris before seating. Confirm insert orientation is right-hand before tightening to avoid chipping the cutting edge.
