Iscar 5600630 Milling Insert Adkt 150564R-HM IC28 Carbide

Product Description

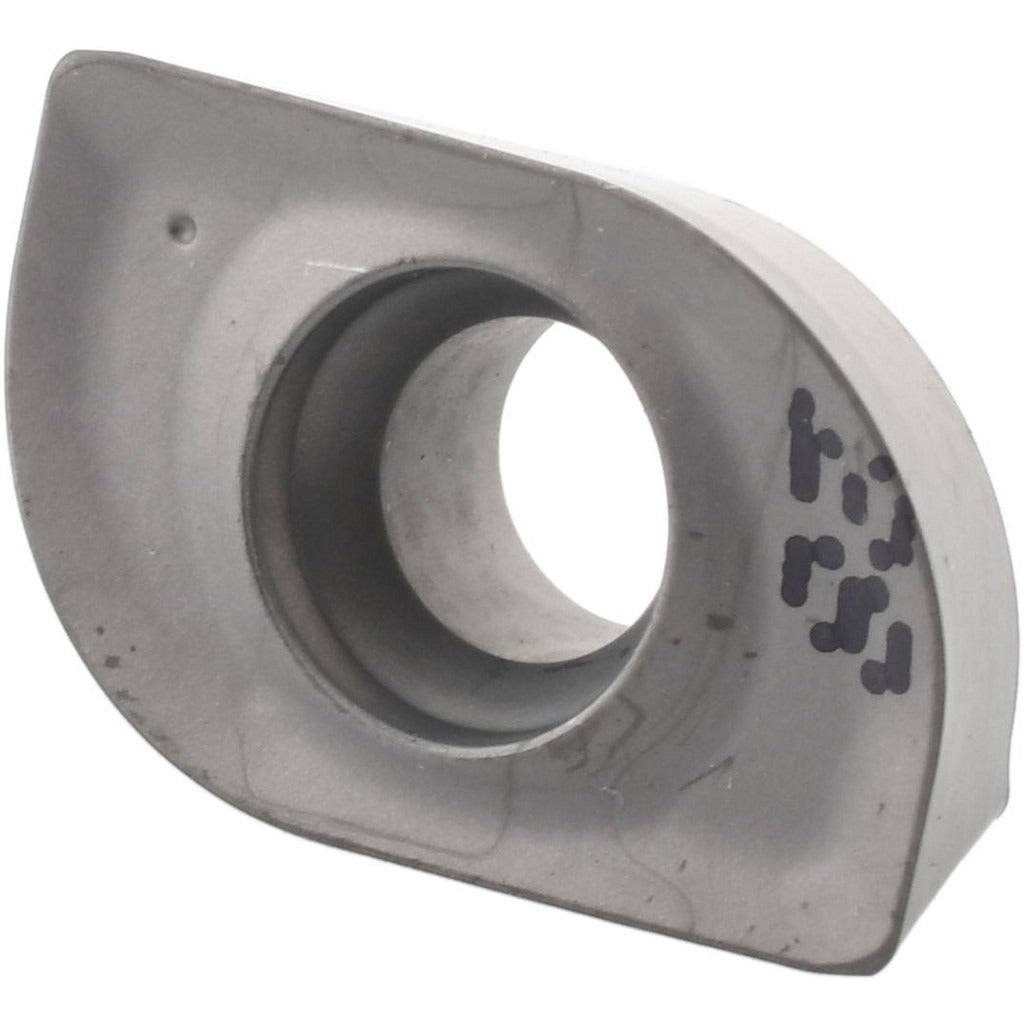

The ISCAR 5600630 is a solid carbide milling insert carrying the ANSI designation ADKT 150564R-HM IC28. It is a parallelogram-shaped, single-sided insert designed for use in indexable milling cutters operating on non-ferrous metal workpieces. The insert is uncoated (bright finish), features a positive rake geometry, and delivers two cutting edges per insert. With a maximum depth of cut of 0.5120 inches and a cutting edge effective length of 0.5200 inches, it is suited for productive material removal in aluminum, copper alloys, and similar non-ferrous applications. Licensed metalworking machinists and CNC tool setters are the primary installers of this insert type.

This insert is intended for non-ferrous metal milling applications in both production and job-shop environments. It is compatible with ISCAR HELIMILL series cutter bodies and specifically fits cutter series ETS, FTS, ADK, and E90. The right-hand cutting orientation and screw-clamping holding method make it straightforward to index or replace at the machine without special fixtures. The HM chip breaker geometry is engineered for non-ferrous materials, denoted by primary workpiece material code N per ISO 13399 standards.

Key Features

• Solid carbide substrate, IC28 manufacturer grade — suited for non-ferrous metal cutting at material grade C5 and C6
• Uncoated (bright) finish — reduces built-up edge on aluminum and other non-ferrous materials
• Positive rake geometry with honed cutting edge style for reduced cutting forces
• Two cutting edges per insert, right-hand orientation, single-sided
• HM chip breaker optimized for non-ferrous chip control
• Screw-clamp insert holding method for secure, repeatable seating in compatible bodies
• Meets ANSI and ISO 13399 standards; ANSI code ADKT 150564R-HM IC28

Compatibility

Designed for use with ISCAR HELIMILL series cutter bodies. Compatible cutter series include ETS, FTS, ADK, and E90. Insert size code 150564, inscribed circle 0.3750 inches, right-hand cut.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC tooling technician with the machine spindle fully stopped and locked out. Use the correct torx or hex key as specified by the cutter body manufacturer when tightening the clamping screw — do not over-torque the screw or seat the insert with a hammer or impact tool. Inspect the insert pocket for chips or debris before seating a new insert, as contamination will affect runout and surface finish. Dispose of worn inserts in accordance with applicable shop safety and carbide recycling guidelines.
