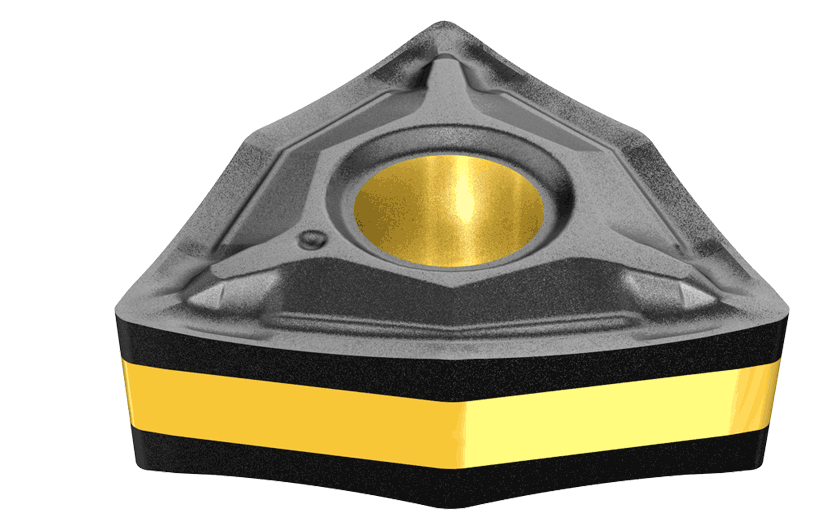

Iscar 5595631 WNMG-433-WG-IC428 ISCAR TURNING INSERTS PVD

Product Description

The Iscar 5595631 WNMG-433-WG-IC428 is a turning insert designed for various machining tasks. This insert features a specific shape and style that adapts well to steel and cast iron materials. It applies to medium finishing operations and benefits from a durable coating.

• Insert shape is a trigon with an angle of 80 degrees
• Made from carbide material, suitable for various workpieces
• Clearance angle is negative, enhancing cutting efficiency

Product Highlights

This turning insert is essential for achieving precise and effective cuts in metalworking projects.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: WNMG

Technical Specifications

• Insert Shape: 80 degrees trigon
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0470 inches
• Insert Material: Carbide
• Work Material: Steel, hardened materials, cast iron
• Machining Application: Finishing-medium
• Insert Coating: TiC+Al2O3
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.3430 inches
• Min Depth of Cut: 0.0470 inches
• Max Depth of Cut: 0.1570 inches
• Min Feed: 0.0118 inches
• Max Feed: 0.0315 inches
