Iscar 5569383 SNMG-543-M3M IC807 CARB INSERT

Brand: ISCAR
SKU: 5569383
Availability: Out Of Stock
$25.79
$25.79
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

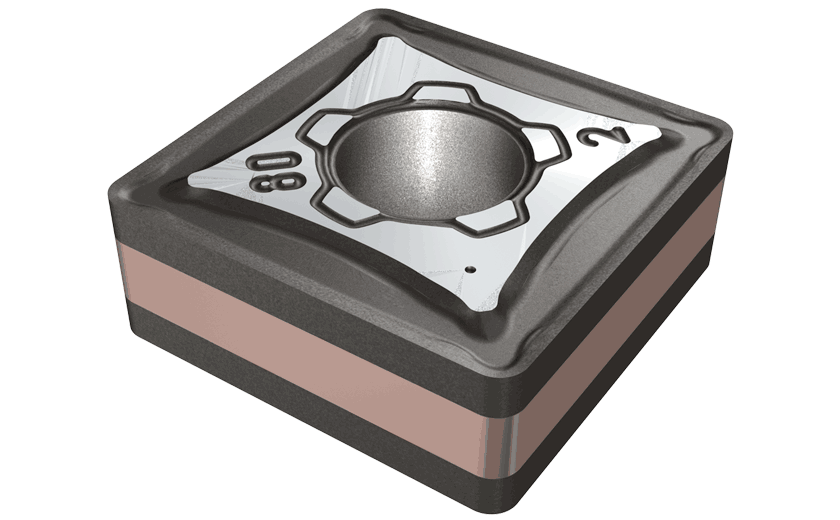

The Iscar SNMG-543-M3M IC807 Carb Insert is designed for various machining tasks. This insert features a square shape with a clearance angle that allows for efficient cutting. It is suitable for stainless steel, steel, heat-resistant materials, hardened materials, and cast iron.

  • Insert Material: Carbide
  • Machining Application: Finishing and Semi Roughing
  • Insert Coating: TiAlN and TiN

Product Highlights

This insert is ideal for precision machining, offering reliability and durability in demanding applications.

Product Information

Standard Information

  • Brand: Iscar
  • Insert Style: SNMG

Technical Specifications

  • Insert Shape: 90 degree Square
  • Clearance Angle: Negative
  • Size: 0.6250 inches
  • Corner Radius: 0.0470 inches
  • Insert Thickness: 0.2500 inches
  • Min Depth of Cut: 0.0200 inches
  • Max Depth of Cut: 0.3150 inches
  • Min Feed: 0.0039 inches
  • Max Feed: 0.0236 inches
  • Work Material: Stainless Steel, Steel, Hi Temp, Hardened Materials, Cast Iron
  • Insert Coating: TiAlN and TiN
