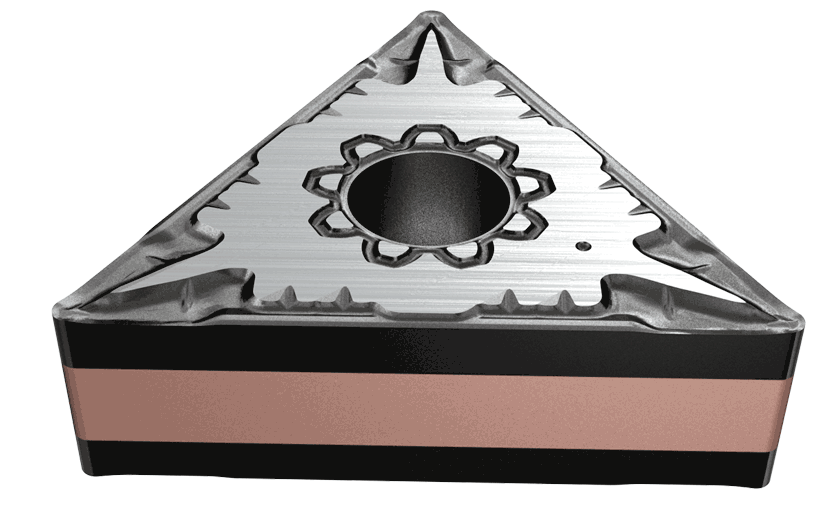

Iscar 5568896 TNMG-431-F3M-IC807 Insert Style Carbide

Product Description

The Iscar TNMG-431-F3M-IC807 is a carbide insert designed for various machining tasks. This insert is well-suited for turning applications, especially in stainless steel, steel, and high-temperature alloys. The negative clearance angle and triangular shape help provide effective cutting efficiency with stability.

• Insert Style: TNMG
• Material: Carbide
• Coating: TiAlN+TiN

Product Highlights

This insert is ideal for finishing and semi-roughing operations. It offers a corner radius of 0.016 inches and is compatible with a maximum feed of 0.0126 inches, making it a versatile choice for various machining applications.

Product Information

Standard Information

• Brand: Iscar
• Part #: TNMG-431-F3M-IC807

Technical Specifications

• Insert Shape: 60° Triangle
• Size: 0.5000 inches
• Corner Radius: 0.0160 inches
• Work Material: Stainless Steel, Steel, Hi Temp, Hardened Materials, Cast Iron
• Machining Application: Finishing, Semi Roughing
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.8660 inches
• Min Depth of Cut: 0.0040 inches
• Max Depth of Cut: 0.0590 inches
• Min Feed: 0.0020 inches
• Max Feed: 0.0126 inches
