Iscar 5568885 CNMG-431-F3M-IC807 Power 0.5000 Replacement MPN

Product Description

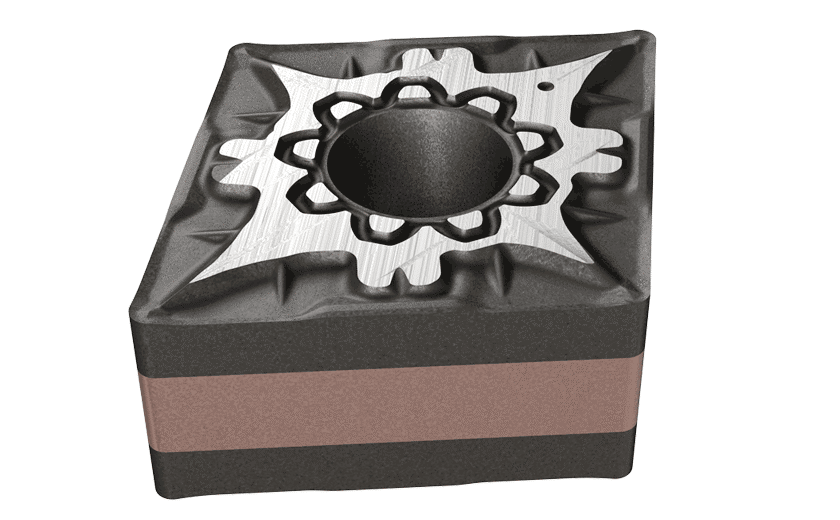

The Iscar CNMG-431-F3M-IC807 is designed for precision machining and offers a reliable performance. This insert features a CNMG insert style with an 80 degree diamond shape, suitable for various machining applications. Made from carbide, this tool is effective for working with stainless steel, hardened materials, and cast iron. The negative clearance angle helps enhance tool stability and durability.

• Insert Style: CNMG
• Corner Radius: 0.0160 inches
• Coating: TiAlN + TiN

Product Highlights

This insert is optimal for finishing and semi-roughing applications. Its design ensures high machining efficiency and improved surface finish.

Product Information

Standard Information

• Brand: Iscar
• Insert Shape: 80 degree Diamond

Technical Specifications

• Insert Material: Carbide
• Work Material: Stainless Steel, Steel, High Temp, Hardened Materials, Cast Iron
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.5080 inches
• Minimum Depth of Cut: 0.0040 inches
• Maximum Depth of Cut: 0.0590 inches
• Minimum Feed: 0.0020 inches
• Maximum Feed: 0.0118 inches
