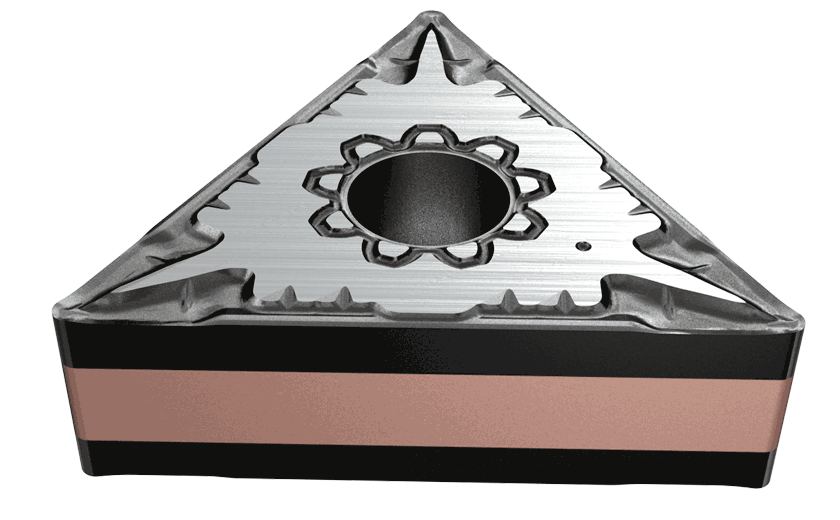

Iscar 5568880 TNMG-332-F3M-IC807 Insert 0.3750

Product Description

The Iscar 5568880 TNMG-332-F3M-IC807 insert is made from carbide. It is suitable for use with stainless steel, steel, high-temperature materials, hardened materials, and cast iron. This insert is designed for finishing and semi-roughing operations with a negative clearance angle.

• Insert Material: Carbide
• Size: Zero point three seven five inches
• Insert Shape: 60-degree Triangle

Product Highlights

This insert provides precision cutting and is effective in various machining applications.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: TNMG

Technical Specifications

• Clearance Angle: Negative
• Corner Radius: Zero point zero three one inches
• Insert Thickness: Zero point one eight seven inches
• Insert Edge Length: Zero point six five inches
• Min Depth of Cut: Zero point zero zero four inches
• Max Depth of Cut: Zero point zero five nine inches
• Min Feed: Zero point zero zero three nine inches
• Max Feed: Zero point zero one six five inches
