Iscar 5568851 TNMG-332-F3M-IC806 Insert Style 0.3750

Product Description

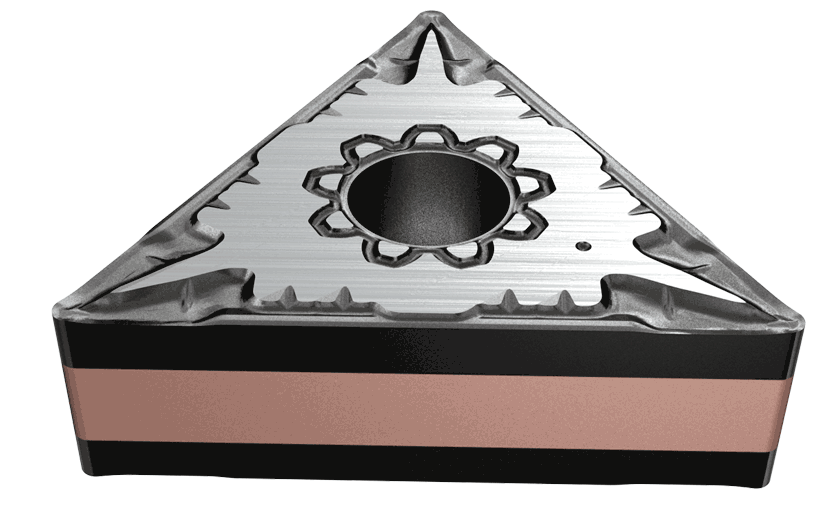

The Iscar 5568851 TNMG-332-F3M-IC806 is a carbide insert designed for turning applications. It features a 60-degree triangular shape with a negative clearance angle. This insert is suitable for medium to semi-rough machining on high-temperature work materials.

• Insert Style: TNMG
• Insert Material: Carbide
• Insert Coating: TiAlN+TiN

Product Highlights

This insert offers excellent durability and performance for a variety of machining tasks. Its design helps enhance cutting efficiency and prolong tool life.

Product Information

Standard Information

• Brand: Iscar
• MPN: 5568851

Technical Specifications

• Insert Shape: 60-degree Triangle
• Corner Radius: 0.0310 inches
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.6500 inches
• Min Depth of Cut: 0.0040 inches
• Max Depth of Cut: 0.0590 inches
• Min Feed: 0.0039 inches
• Max Feed: 0.0165 inches
