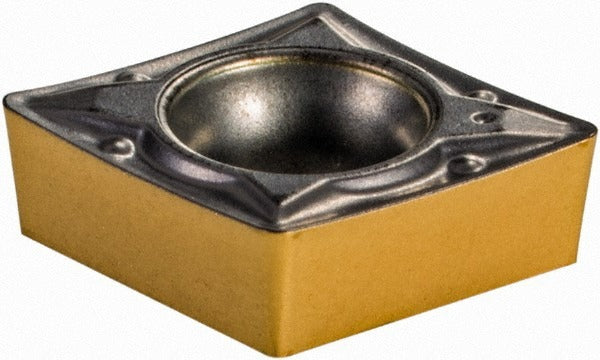

Iscar 5568585 Turning Insert CCMT2-1-PF IC830 Carbide

Product Description

The ISCAR 5568585 is a CCMT2-1-PF IC830 grade solid carbide turning insert designed for single-point turning operations on CNC lathes and turning centers. The insert features a diamond (80-degree) shape with a positive rake geometry and a 7-degree relief angle, making it well suited for external and internal turning of a broad range of workpiece materials. The IC830 grade substrate is PVD-coated with an AlTiN and TiN multilayer finish, which provides heat resistance and wear protection across universal material groups. The 0.4 mm (0.0157 inch) corner radius and T-style chip breaker geometry help control chip flow and reduce cutting forces on moderate to light finishing passes.

This insert is part of the Isoturn series and is intended for use in CCMT-style turning toolholders. It is suited for machining universal workpiece materials classified under ISO material groups M, P, and S, covering stainless steels, carbon and alloy steels, and superalloys. The insert is appropriate for both production turning and maintenance-shop applications where consistent surface finish and reliable tool life are required. Maximum depth of cut is 2.50 mm (0.098 inch). Licensed machinists and CNC operators typically handle installation and indexing in production environments.

Key Features

• IC830 grade solid carbide with PVD-applied AlTiN and TiN coating for elevated wear resistance
• Diamond insert shape (80-degree included angle, shape code C) for versatile turning profiles
• 0.4 mm (0.0157 inch) corner radius with T-style chip breaker for controlled chip formation
• Positive rake geometry with 7-degree relief angle reduces cutting forces on lighter cuts
• Maximum depth of cut of 2.50 mm (0.098 inch) suitable for finishing and semi-finishing passes
• Compliant with ISO 13399 cutting tool data representation standards

Compatibility

Designed for use in CCMT-style turning toolholders accepting CCMT2-1 insert size. Compatible with ISO material groups M, P, and S as specified by the manufacturer. Sold individually; minimum order quantity is 10 units.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC operator with the machine powered down and all axes at rest. Use the appropriate torx or hex key to the toolholder manufacturer's specified clamping procedure when seating the insert. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert. Do not exceed the manufacturer-rated maximum depth of cut for this insert geometry.
