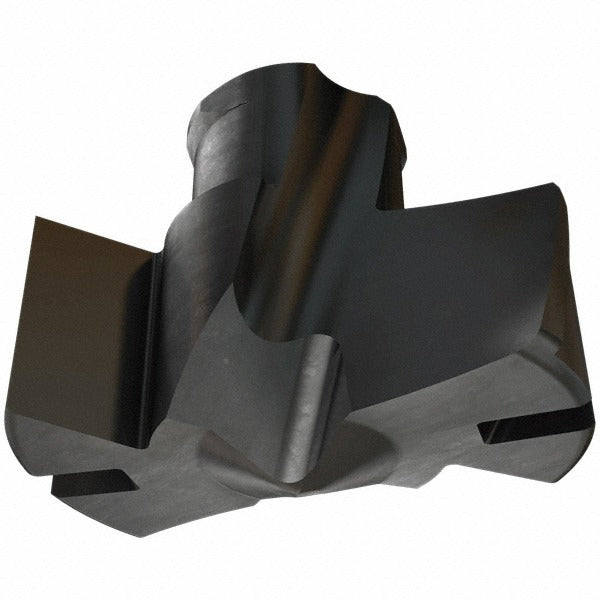

Iscar 5568158 Replaceable Drill Tip 0.752 in 140 Deg IC908

Product Description

The ISCAR 5568158 is a replaceable drill tip in the FCP series, designed for indexable drilling systems used in metal-cutting operations. This tip measures 0.7520 inches (19.00 mm) in cutting diameter and features a 140-degree point angle with a flat point type and straight flute geometry. It is manufactured from solid carbide with a submicron grain material grade and finished with a TiAlN coating applied via a PVD process. The IC908 manufacturer grade delivers wear resistance and thermal stability in demanding cutting environments. Licensed machinists and CNC programmers working in production machining environments are the primary users of this insert style.

This drill tip is suited for hole making, chamfering, and drilling operations in both residential shop and industrial production settings. Primary workpiece materials include steel and cast iron (ISO material codes P and K). Secondary workpiece materials include stainless steel, superalloys, titanium, and hard materials (ISO material codes M, S, and H). The insert seat size is 19, corresponding to compatible FCP-series drill bodies. The ISO number for this tip is FCP 191 and it conforms to ISO 13399 standards.

Key Features

• 0.7520 inch cutting diameter with 140-degree flat point angle for controlled entry and exit
• Solid carbide construction with submicron grain grade for edge stability in hard materials
• TiAlN PVD coating for heat resistance and extended tool life in steel and cast iron
• Straight flute geometry with web-thinned design to reduce thrust and improve chip evacuation
• Two-flute configuration with clamp-style insert holding method
• Conforms to ISO 13399 tooling data standards for system compatibility

Compatibility

Designed for use with FCP-series indexable drill bodies accepting insert seat size 19. Compatible primary workpiece materials are steel and cast iron; secondary materials include stainless steel, superalloys, titanium, and hard materials. The corresponding ISO number is FCP 191.

Installation Notes

Installation and replacement of indexable drill tips should be performed by qualified machinists with the machine powered off and locked out per applicable lockout/tagout procedures. Use the correct torque wrench or clamp key specified for the FCP drill body to seat the tip securely without over-tightening. Inspect the insert seat for chips or debris before seating the new tip. Confirm coolant-through is not required for this tip, as this part does not support through-coolant delivery.
