Product Description

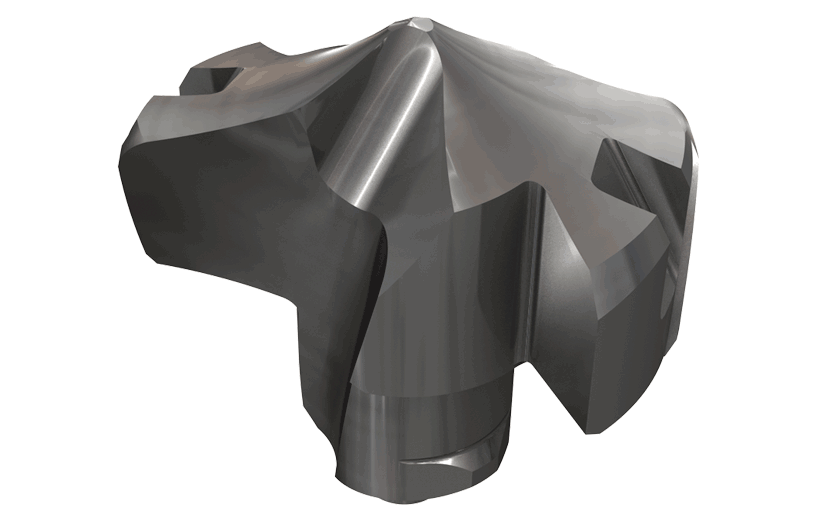

The Iscar HCP-0625-IQ IC908 SumoCham Self-Centering Drill Head offers precision and efficiency in drilling operations. This tool is designed for use with various materials, including steel and stainless steel. The MPN of this product is 5567984, ensuring authenticity and high performance.
- Designed for use with multiple materials including steel and hard alloys.
- Diameter of drill head is 0.6260 inches.
- Coated with TiAlN for enhanced durability.
Product Highlights
The Iscar SumoCham Self-Centering Drill Head is ideal for machining applications requiring high precision. Its design features improve centering during operation, leading to better results.
Product Information
Standard Information
-
Brand: Iscar
-
Series: HCP-IQ
Technical Specifications
-
Diameter: 0.6260 inches (15.900 mm)
-
Functional Length: 0.1910 inches (4.851 mm)
-
Point Length: 0.1528 inches (3.880 mm)
-
MFG Grade: IC908
-
Seat Size: 15.0
-
Chamfer Length: 0.0270 inches (0.686 mm)
-
Chamfer Angle: 30.00
-
Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
