Iscar 5567971 HCP-0563-IQ IC908 SumoCham Self-Centering Drill Head

Product Description

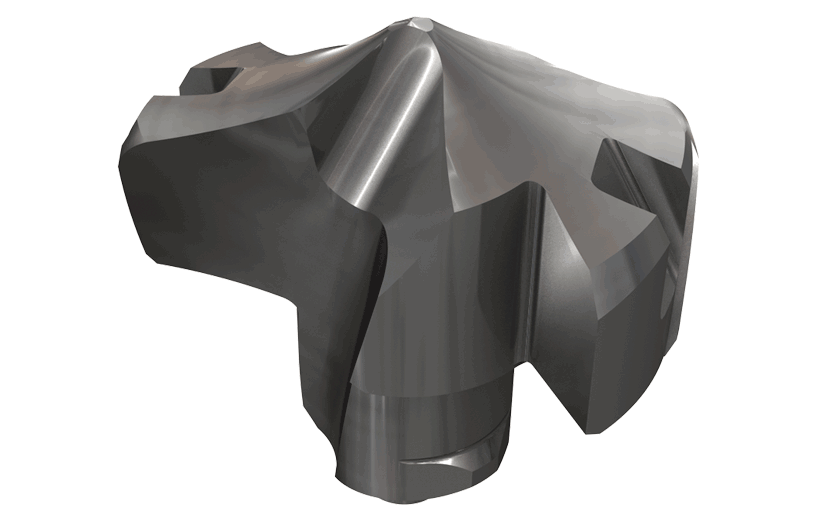

The Iscar HCP-0563-IQ IC908 SumoCham Self-Centering Drill Head is built for precision drilling. This carbide drill head is suitable for a wide range of materials, including steel, stainless steel, cast iron, and high-temperature alloys. The drill head features a special coating for enhanced performance.

• Diameter: 0.563 inches (14.3 mm)
• Functional Length: 0.178 inches (4.52 mm)
• Point Length: 0.1429 inches (3.63 mm)

Product Highlights

This drill head is designed to deliver accuracy in drilling with a self-centering function that helps achieve better results.

Product Information

Standard Information

• Brand: Iscar
• Coating/Finish: TiAlN

Technical Specifications

• Diameter: 0.5630 inches (14.300 mm)
• Functional Length: 0.1780 inches (4.520 mm)
• Point Length: 0.1429 inches (3.630 mm)
• Series: HCP-IQ
• MFG Grade: IC908
• Seat Size: 14.0
• Chamfer Length: 0.0250 inches (0.635 mm)
• Chamfer Angle: 30.00 degrees
• Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
