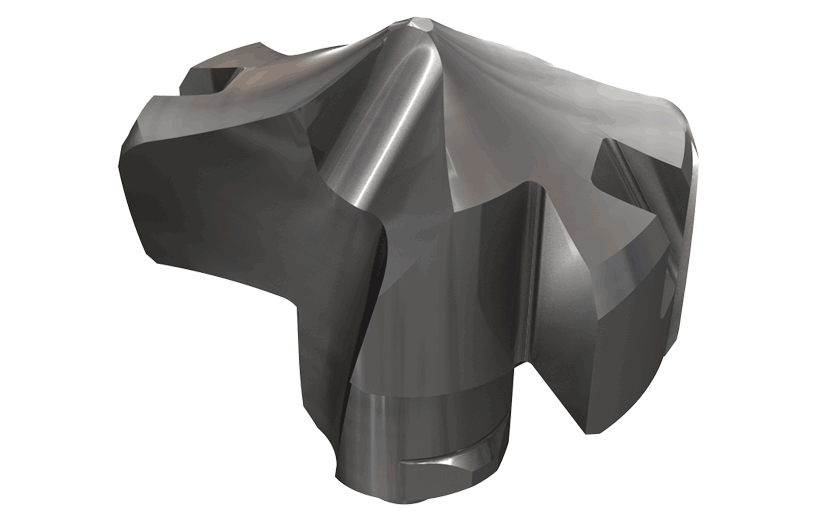

Iscar 5567938 HCP-0390-IQ-IC908 ISCAR SumoChamber Drilling Head 0.3900

Product Description

The Iscar HCP-0390-IQ-IC908 SumoChamber Drilling Head offers durability and efficiency for various applications. This product is designed for use with steel, stainless steel, cast iron, hard materials, and high-temperature alloys. It features a carbide construction for enhanced cutting performance.

• Diameter: 0.3900 inches
• Functional Length: 0.1400 inches
• MFG Grade: IC908

Product Highlights

The HCP-0390-IQ-IC908 is part of Iscar's HCP-IQ series, designed for drilling precision. Its TiAlN coating provides wear resistance, making it suitable for tough materials.

Product Information

Standard Information

• Brand: Iscar
• Coating/Finish: TiAlN

Technical Specifications

• Diameter: 0.3900 inches
• Functional Length: 0.1400 inches
• Point Length: 0.0886 inches (2.250 mm)
• Series: HCP-IQ
• MFG Grade: IC908
• Seat Size: 9.0
• Chamfer Length: 0.0180 inches (0.457 mm)
• Chamfer Angle: 30.00
• Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
