Iscar 5567878 VNMG-331-F3M-IC6025 ISCAR 0.3750

Product Description

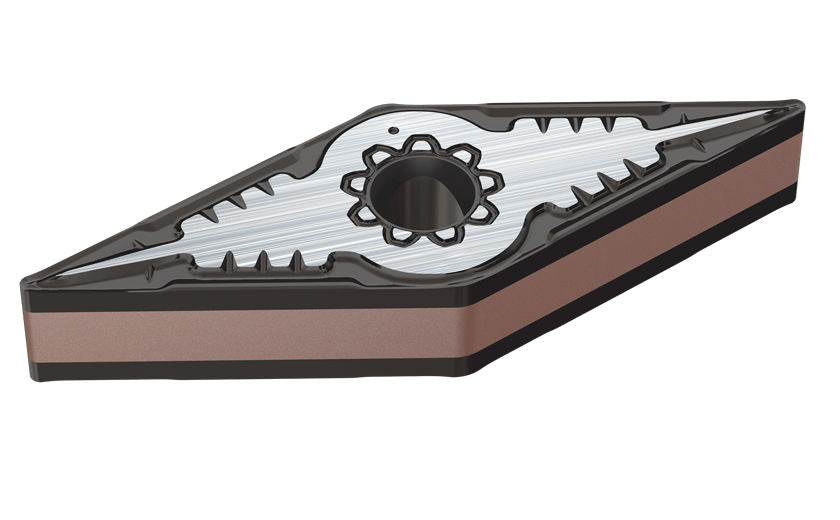

The Iscar VNMG-331-F3M-IC6025 is a carbide insert designed for turning applications. This insert features a 35° diamond shape and a negative clearance angle. It is suitable for semi-finishing and roughing work with stainless steel materials.

• Insert Style: VNMG
• Insert Material: Carbide
• Coating: TiCN+Al2O3+TiN

Product Highlights

This insert provides effective cutting performance in challenging materials, ensuring durability and efficiency in machining tasks.

Product Information

Standard Information

• Brand: Iscar
• Part Number: VNMG-331-F3M-IC6025

Technical Specifications

• Insert Shape: 35° Diamond
• Size: 0.3750 inches
• Corner Radius: 0.0160 inches
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.6540 inches
• Min Depth of Cut: 0.0040 inches
• Max Depth of Cut: 0.0590 inches
• Min Feed: 0.0020 inches
• Max Feed: 0.0118 inches
