Iscar 5567866 DNMG-431-F3M-IC6025 Insert Tool

Product Description

The Iscar DNMG-431-F3M-IC6025 is a precision cutting insert designed for high-performance machining. This carbide insert is ideal for semi-finishing and roughing operations on stainless steel materials.

• Insert Style: DNMG
• Insert Material: Carbide
• Requires minimal depth of cut

Product Highlights

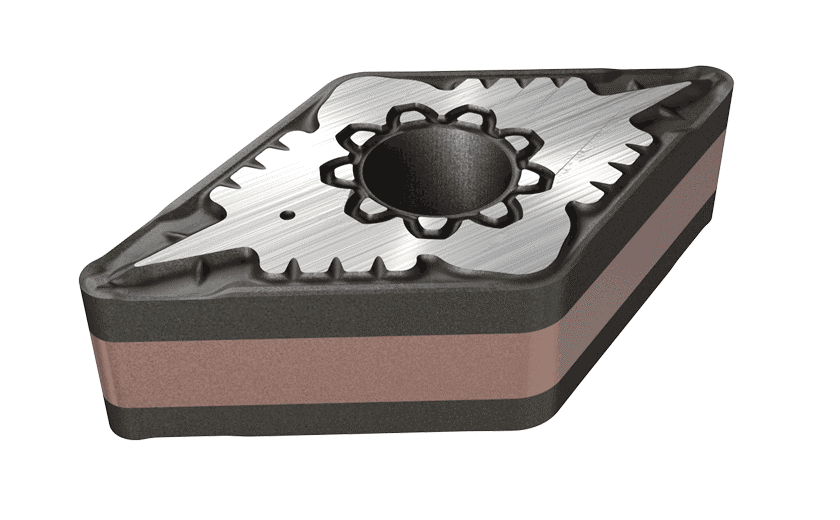

This insert features a diamond shape with a negative clearance angle for efficient cutting performance. It is coated with TiCN, Al2O3, and TiN for enhanced durability and wear resistance.

Product Information

Standard Information

• Brand: Iscar
• Part Number: DNMG-431-F3M-IC6025

Technical Specifications

• Size: 0.5000 inches
• Corner Radius: 0.0160 inches
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.6100 inches
• Min Depth of Cut: 0.0040 inches
• Max Depth of Cut: 0.0590 inches
• Min Feed: 0.0020 inches
• Max Feed: 0.0118 inches
