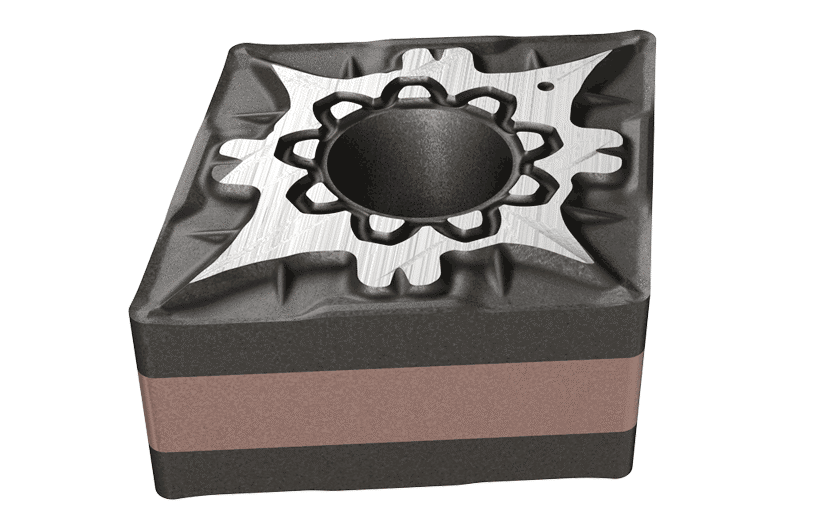

Iscar 5567819 CNMG-331-F3M-IC6015 Power Stainless Steel Insert

Product Description

The Iscar 5567819 CNMG-331-F3M-IC6015 is a carbide insert designed for turning applications. This insert is suitable for stainless steel machining and is ideal for fine finishing tasks. The negative clearance angle contributes to effective chip removal and extends tool life.

• Insert Style: CNMG
• Insert Material: Carbide
• Insert Coating: TiCN+Al2O3+TiN

Product Highlights

This insert is beneficial for machinists needing precision and durability during cutting tasks.

Product Information

Standard Information

• Brand: Iscar
• Part Number: CNMG-331-F3M-IC6015

Technical Specifications

• Insert Shape: 80° Diamond
• Clearance Angle: Negative
• Size: 0.375 inches
• Corner Radius: 0.016 inches
• Insert Thickness: 0.187 inches
• Insert Edge Length: 0.381 inches
• Min Depth of Cut: 0.004 inches
• Max Depth of Cut: 0.059 inches
• Min Feed: 0.002 inches
• Max Feed: 0.0118 inches
