Iscar 5567739 Carbide Replaceable Tip Drill 0.626 in

Product Description

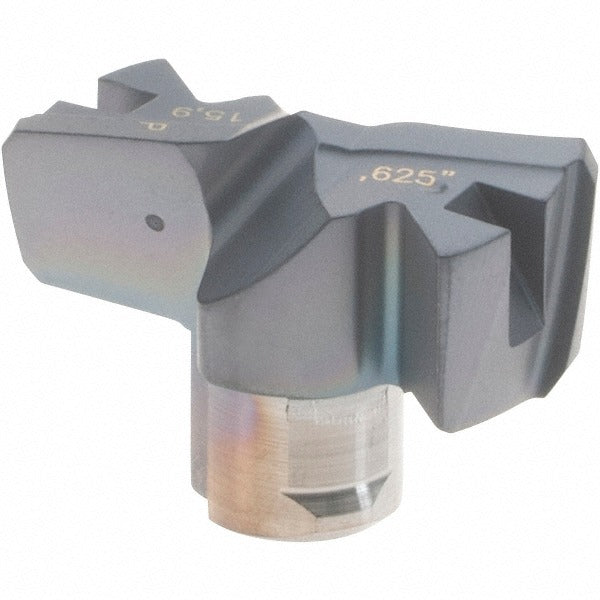

The ISCAR 5567739 is a carbide replaceable tip drill in the FCP series, designed for precision hole-making in metalworking applications. The tip is manufactured from solid carbide in the IC908 submicron material grade and features a PVD-applied TiAlN coating for extended tool life under demanding cutting conditions. The drill point angle is 140 degrees with a thinned web geometry, which reduces entry force and improves centering on the workpiece. The flat bottom style and slow spiral flute configuration are optimized for controlled chip evacuation and stable cutting action. Licensed machinists and tooling technicians install this replaceable tip style to reduce tooling cost by swapping tips without replacing the entire drill body.

This replaceable tip is intended for drilling operations on steel and cast iron as its primary workpiece materials, with secondary suitability for stainless steel, super-alloys, titanium, and hard materials. The FCP series tip seats into compatible ISCAR FCP drill bodies using an insert seat size 15. The cutting diameter is 0.626 inches with a functional length of 0.206 inches and an overall projection of 0.233 inches. It conforms to ISO 13399 tooling data standards. This tip is a practical choice in production environments where consistent hole quality in ferrous and difficult-to-machine materials is required.

Key Features

• Solid carbide IC908 submicron grade tip for wear resistance in steel and cast iron
• PVD TiAlN coating extends tip life in high-temperature cutting environments
• 140-degree drill point angle with thinned web for reduced entry force and improved centering
• Flat bottom style with slow spiral flutes for controlled chip evacuation
• Replaceable tip design lowers tooling cost by reusing the drill body
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with compatible ISCAR FCP series drill bodies accepting insert seat size 15. The ISO number for this tip is FCP 159. Verify seat size and series compatibility with the drill body before ordering.

Installation Notes

Replaceable tip drills of this type are installed by qualified machinists or tooling technicians using the manufacturer-specified twist-lock seating method. Ensure the drill body and tip seat are clean and free of chips or debris before seating the tip. Do not apply excessive force during installation; the tip should seat fully and lock positively without hammering. Follow your machine shop safety procedures and the tool manufacturer guidelines for spindle speed, feed rate, and coolant setup before initiating a cut.
