Iscar 5567705 Carbide Replaceable Tip Drill 1-1/8 in IC908

Product Description

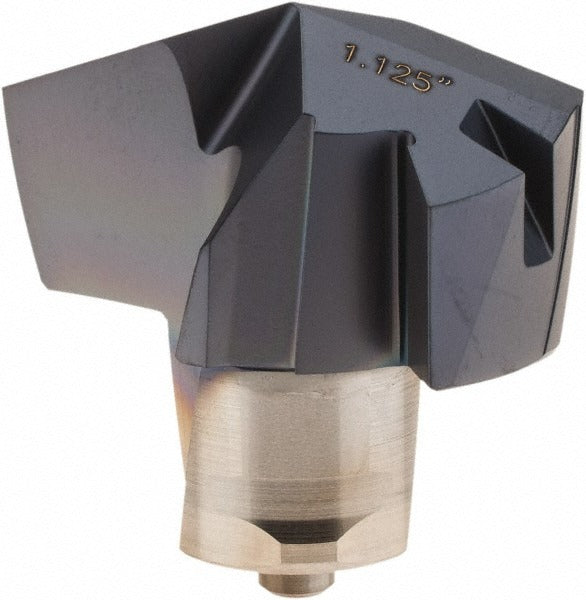

The ISCAR 5567705 is a solid carbide replaceable tip drill insert from the ICP series, designed to seat into compatible modular drill bodies for high-productivity hole-making operations. It features a 1.125-inch (28.58 mm) cutting diameter, a 140-degree included angle with a thinned point geometry, and a TiAlN coating applied via PVD process. The IC908 submicron carbide grade delivers edge retention and wear resistance in demanding machining environments. The honed cutting edge and slow spiral flute design promote stable chip evacuation and consistent surface finish. This insert is intended for use by machinists and tooling specialists in production or job-shop settings.

This replaceable tip is engineered primarily for drilling steel and is also rated for stainless steel, cast iron, super-alloys, titanium, and hard materials, covering ISO material groups P, M, K, S, and H. The ICP series modular format allows tip replacement without removing the drill body from the tool holder, reducing downtime on CNC machining centers and turning centers. Insert seat size is 28, corresponding to the ICP 2858 ISO number. Applications are limited to drilling operations.

Key Features

• IC908 submicron carbide grade with PVD-applied TiAlN coating for extended tool life in steel and hard materials
• 140-degree thinned point angle reduces thrust force and improves centering accuracy
• Slow spiral flute with honed cutting edge promotes smooth chip flow and stable cutting action
• Replaceable tip design (ICP series) allows fast tip swap without disturbing tool body setup
• Rated across ISO material groups P, M, K, S, and H — steel through hard materials
• Conforms to ISO 13399 tooling data standards for seamless CAM and tool management integration

Compatibility

Designed for use with ICP series modular drill bodies accepting an insert seat size of 28, per ISO number ICP 2858. Specific compatible drill body part numbers were not provided in the product data; verify seat size and series designation against the drill body specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the drill body and machine spindle are fully stopped and locked out before removing or seating the tip insert. Use the correct torx or hex key as specified by the drill body manufacturer to achieve proper clamping torque — do not overtighten or substitute fasteners. Inspect the insert seat for chips or debris before seating the new tip to ensure full contact and accurate runout.
