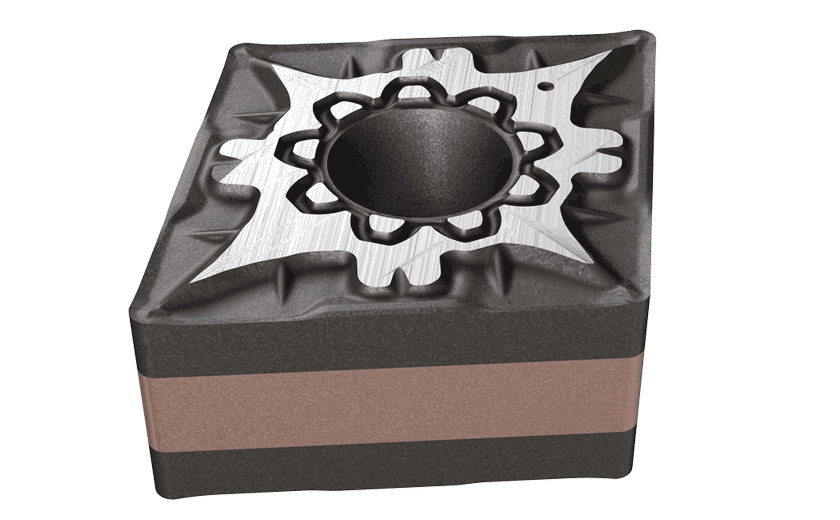

Iscar 5567692 CNMG-431-F3M IC6025 CARB INSERT

Product Description

The Iscar CNMG-431-F3M IC6025 Carb Insert is designed for precision machining tasks. This insert utilizes a diamond shape with a clearance angle set to negative, enhancing performance in various machining applications.

• Insert material: Carbide for durability
• Compatible with stainless steel work material
• Ideal for semi-finishing and roughing applications

Product Highlights

This insert features a coating of TiCN+Al2O3+TiN to improve wear resistance. It is effective for a variety of machining settings.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: CNMG

Technical Specifications

• Insert Shape: 80° Diamond
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0160 inches
• Insert Material: Carbide
• Work Material: Stainless Steel
• Machining Application: Semi Finishing-Roughing
• Insert Coating: TiCN+Al2O3+TiN
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.5080 inches
• Min Depth of Cut: 0.0040 inches
• Max Depth of Cut: 0.0590 inches
• Min Feed: 0.0020 inches
• Max Feed: 0.0118 inches
