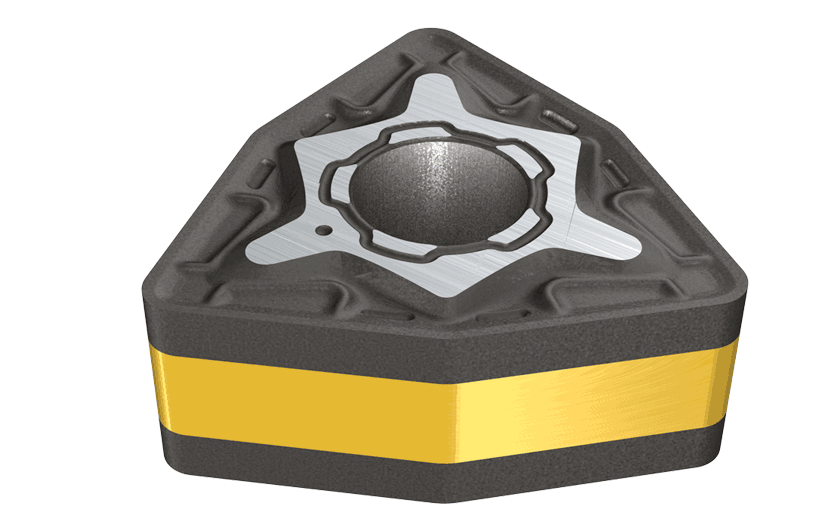

Iscar 5567523 WNMG-432-M3P IC8250 CARB INSERT

Product Description

Iscar 5567523 WNMG-432-M3P IC8250 Carb Insert is designed for effective machining of stainless steel and other steel materials. This insert works well for both finishing and roughing applications. It features a negative clearance angle and a shape designed to improve cutting efficiency.

• Insert Style: WNMG
• Insert Material: Carbide
• Max Depth of Cut: 0.1570 inches

Product Highlights

This carbide insert is suitable for various turning tasks and offers enhanced performance in machining.

Product Information

Standard Information

• Brand: Iscar
• Part Number: WNMG-432-M3P-IC8250

Technical Specifications

• Insert Shape: 80 degree Trigon
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0310 inches
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.3430 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.1570 inches
• Min Feed: 0.0059 inches
• Max Feed: 0.0197 inches
• Insert Coating: TiCN+Al2O3+TiN
• Work Material: Stainless Steel, Steel
• Machining Application: Finishing, Roughing
