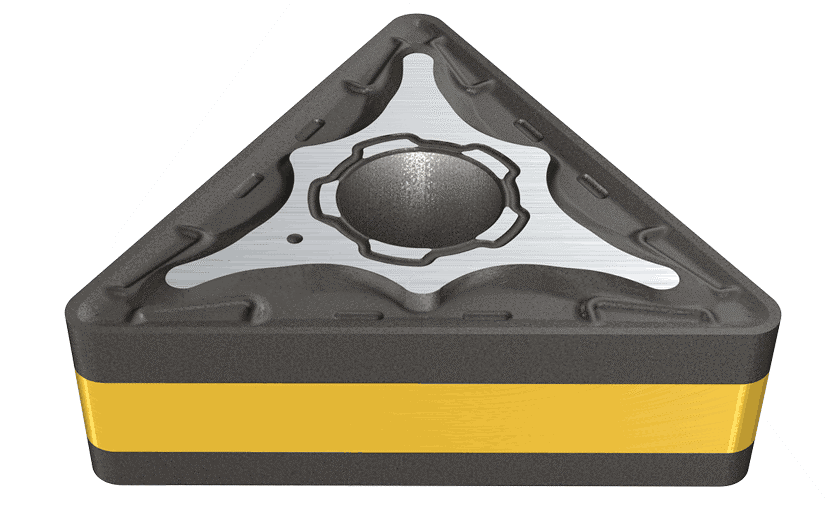

Iscar 5567505 TNMG-432-M3P IC8250 Carb Insert

Product Description

The Iscar TNMG-432-M3P IC8250 Carb Insert is designed for precision machining. Made from carbide, this insert excels in stainless steel and steel applications. Its 60-degree triangular shape is suitable for various turning tasks.

• Insert material: carbide
• Ideal for finishing and roughing operations
• Clearance angle: negative

Product Highlights

This insert is designed for high efficiency and durability in metalworking. The TiCN, Al2O3, and TiN coatings enhance performance and longevity in demanding environments.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: TNMG

Technical Specifications

• Insert Shape: 60-degree Triangle
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0310 inches
• Insert Material: Carbide
• Work Material: Stainless Steel and Steel
• Machining Application: Finishing-Roughing
• Insert Coating: TiCN, Al2O3, TiN
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.8660 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.2600 inches
• Min Feed: 0.0059 inches
• Max Feed: 0.0197 inches
