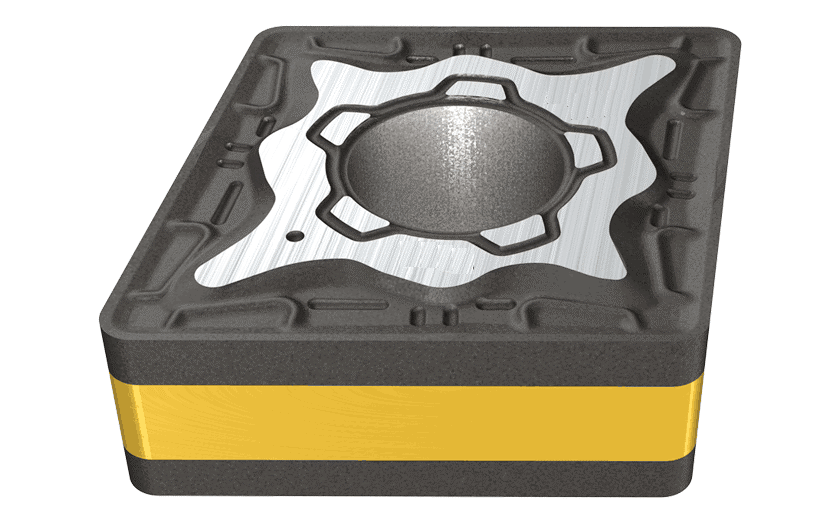

Iscar 5567463 CNMG-431-M3P-IC8250

Product Description

The Iscar 5567463 is a CNMG-431-M3P-IC8250 insert suitable for various machining applications, such as finishing and roughing. This insert features a negative clearance angle with an insert shape of eighty degrees diamond. Constructed from carbide, it is designed for machining stainless steel and steel materials.

• Insert Style: CNMG
• Insert Thickness: 0.1870 inches
• Max Depth of Cut: 0.2170 inches

Product Highlights

The Iscar CNMG-431-M3P-IC8250 is ideal for metalworking professionals needing durable inserts for precision machining.

Product Information

Standard Information

• Brand: Iscar
• Part #: CNMG-431-M3P-IC8250

Technical Specifications

• Insert Shape: 80 degrees Diamond
• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0160 inches
• Material: Carbide
• Work Material: Stainless Steel and Steel
• Insert Coating: TiCN, Al2O3, TiN
• Insert Edge Length: 0.5080 inches
