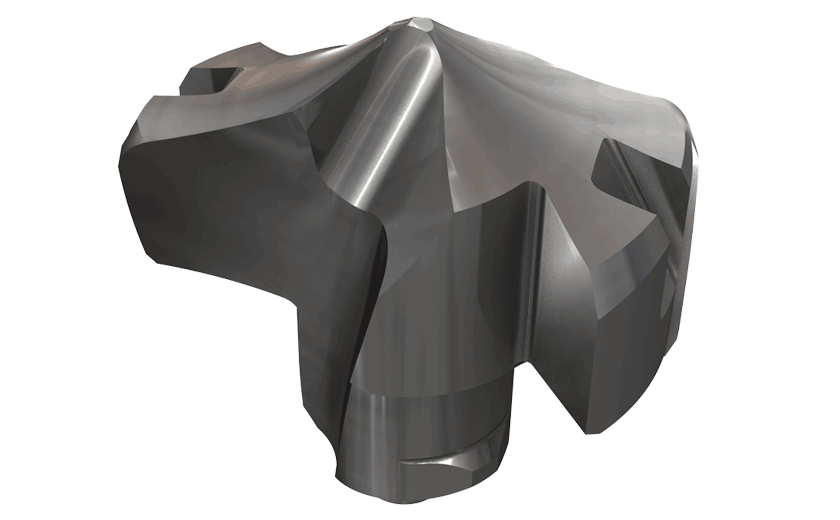

Iscar 5567351 HCP-0709-IQ IC908 Sumocham Self-Center Drill Head 18mm

Product Description

The Iscar HCP-0709-IQ IC908 Sumocham self-center drill head is designed for precision drilling applications. Its MPN is 5567351. This drill head features a diameter of zero point seven zero nine inches and is suitable for various materials.

• Self-centering design for accurate drilling
• Made of durable carbide material
• Compatible with steel, stainless steel, cast iron, and hard materials

Product Highlights

The Iscar HCP-0709-IQ IC908 drill head offers reliable performance in demanding drilling tasks.

Product Information

Standard Information

• Brand: Iscar
• Coating/Finish: TiAlN

Technical Specifications

• Diameter: 0.7090 inches
• Functional Length: 0.2300 inches
• Point Length: 0.1835 inches (4.660 mm)
• Series: HCP-IQ
• MFG Grade: IC908
• Seat Size: 18.0
• Chamfer Length: 0.0320 inches (0.812 mm)
• Chamfer Angle: 30.00 degrees
• Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
