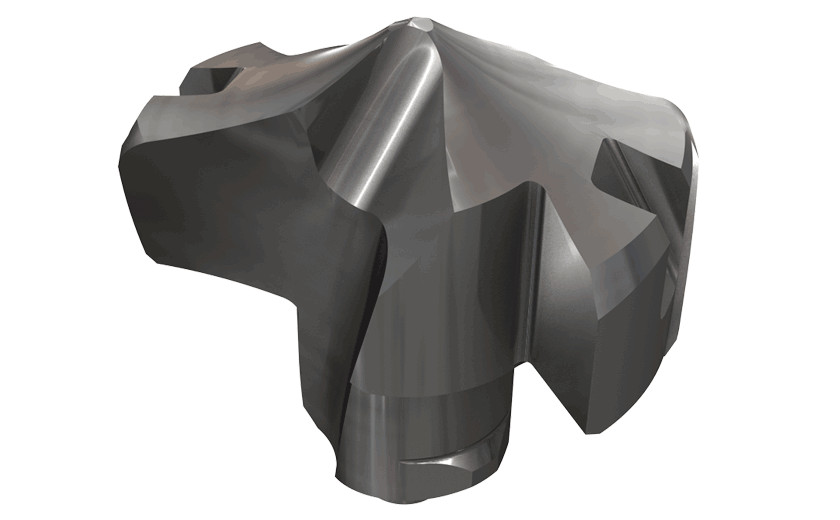

Iscar 5567342 HCP-0531-IQ IC908 SumoCham Self-Centering Drill Head

Product Description

The Iscar HCP-0531-IQ IC908 SumoCham Self-Centering Drill Head is designed for efficient drilling in a variety of materials. This product is particularly effective for steel, stainless steel, cast iron, hard materials, and high-temperature alloys. It has a diameter of zero point five three one inches and a functional length of zero point one six one inches.

• Engineered for self-centering performance
• Compatible with multiple work materials
• Coated with TiAlN for durability

Product Highlights

This drill head is ideal for precise drilling tasks thanks to its self-centering feature and carbide construction.

Product Information

Standard Information

• Brand: Iscar
• Coating/Finish: TiAlN

Technical Specifications

• Diameter: 0.5310 inches
• Functional Length: 0.1610 inches (4.089 mm)
• Point Length: 0.1382 inches (3.510 mm)
• Series: HCP-IQ
• MFG Grade: IC908
• Seat Size: 13.0
• Chamfer Length: 0.0230 inches (0.584 mm)
• Chamfer Angle: 30.00 degrees
• Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
