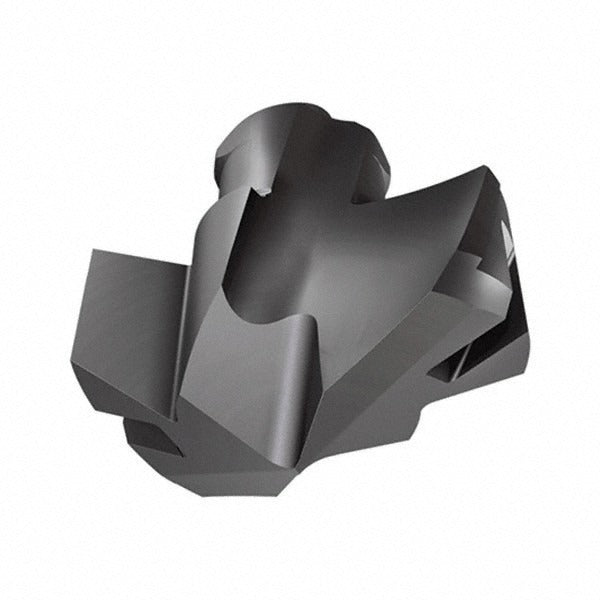

Iscar 5567221 Carbide Replaceable Tip Drill 0.512 in

Product Description

The ISCAR 5567221 is a solid carbide replaceable tip drill insert designed for use in the ICK series modular drill system. This insert carries the IC907 grade designation with a submicron carbide substrate and a PVD-applied TiAlN/TiN dual-layer coating. It features a 140-degree included point angle, a honed cutting edge style, web thinning, and a slow spiral flute configuration. The insert seats into a 13mm insert seat and provides a functional cutting length of 0.176 inches with an overall height of 0.299 inches. Metalworking professionals install this tip as a consumable replacement within the ICK modular drill body.

This insert is suited for drilling operations in cast iron as its primary workpiece material. Secondary workpiece material compatibility includes steel, stainless steel, super-alloys, titanium, and hard materials, corresponding to ISO material group codes P, M, S, and H. The ICK series modular drill system allows the tip to be replaced without removing the drill body from the spindle in many setups, reducing changeover time in production environments. Typical applications include through-hole and blind-hole drilling on CNC machining centers and lathes with live tooling.

Key Features

• IC907 grade solid carbide substrate with submicron grain structure for edge stability
• PVD TiAlN/TiN dual coating for heat resistance and extended tool life in cast iron and steel
• 140-degree point angle with web thinning reduces thrust and improves chip evacuation
• Slow spiral, honed cutting edge geometry suited to hard and abrasive workpiece materials
• K-geometry insert in 13mm insert seat size, compatible with the ICK 130 ISO Number designation
• Conforms to ISO 13399 tooling data standards for integration with tool management systems

Compatibility

Designed for use in the ISCAR ICK series modular drill bodies accepting a 13mm insert seat (ISO Number ICK 130). Refer to ISCAR tooling catalogs to confirm body compatibility before ordering.

Installation Notes

Installation is performed by a trained machinist or tooling technician. The machine spindle must be fully stopped and the tool secured before replacing the insert. Use the torque wrench or key specified by the drill body manufacturer to seat the insert — do not overtighten by hand. Inspect the insert pocket and clamping surfaces for chips or wear before installing a new tip.
