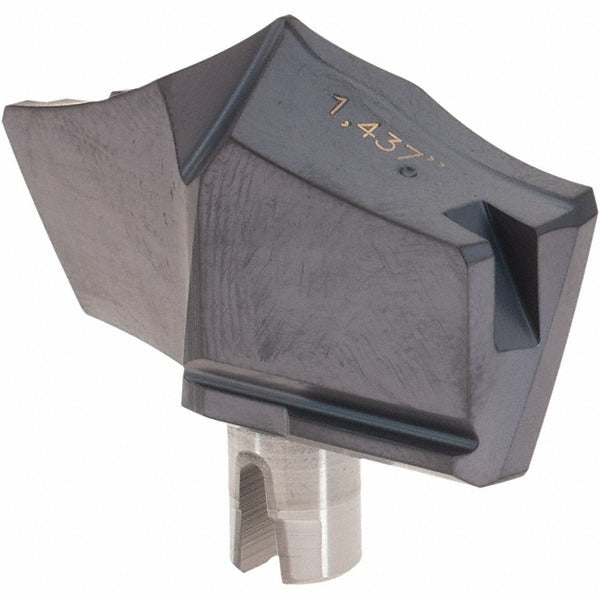

Iscar 5567058 Replaceable Drill Tip 1.437 in IC908 Hfp-iq

Product Description

The ISCAR 5567058 is a replaceable drill tip in the HFP-IQ series, designed for indexable spade-style drilling systems. Built from solid carbide with a submicron material grade, this tip features a TiAlN coating applied via PVD process for extended tool life in demanding cutting environments. The 137-degree point angle and web-thinned geometry promote stable entry and reduced thrust force. It seats in a size-36 insert seat and is held in place by a clamp-style holding method. This tip is installed by machinists and tooling technicians working on CNC drilling operations in production and job-shop environments.

This drill tip is suited for hole-making and drilling applications in steel, cast iron, stainless steel, superalloys, titanium, and hard materials. It is classified under ISO workpiece material codes P, K, M, S, and H, covering a wide range of ferrous and difficult-to-machine materials. The HFP-IQ series is typically used in high-volume production drilling where repeatable accuracy and insert interchangeability are required. The helical flute design with regular spiral supports efficient chip evacuation during through and blind-hole operations.

Key Features

• Solid carbide construction with submicron material grade for rigidity and wear resistance
• TiAlN coating via PVD process for elevated temperature and abrasion resistance
• 137-degree point angle with web-thinned geometry for reduced entry thrust
• Helical flute with regular spiral for consistent chip flow
• Clamp-style insert holding for secure seating and repeatable positioning
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with HFP-IQ series indexable drill bodies accepting size-36 insert seats, conforming to ISO number HFP 365-SPADE IQ designation.

Installation Notes

Installation and replacement of indexable drill tips should be performed by qualified tooling technicians with the machine in a fully powered-down and locked-out state. Use the manufacturer-specified clamping hardware for the HFP-IQ seat to ensure proper seating and runout control. Inspect the seat and clamping surfaces for debris or damage before inserting the tip. Follow applicable shop safety procedures and tooling manufacturer guidelines when handling carbide inserts.
