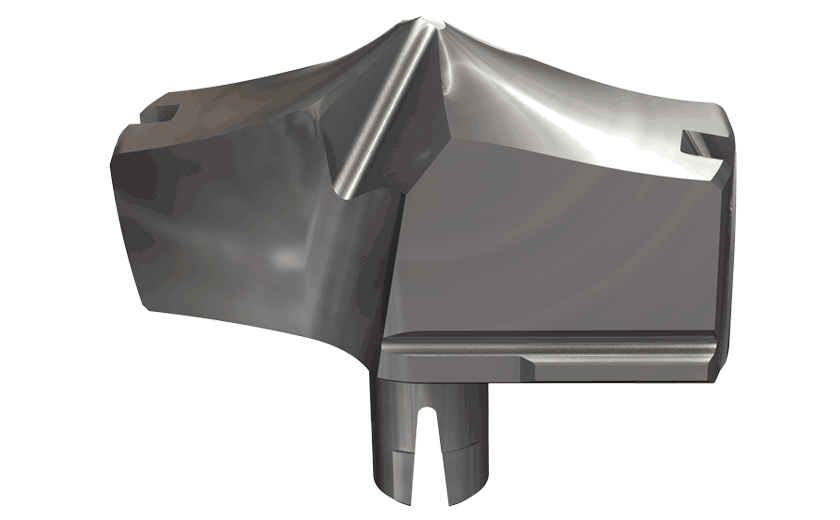

Iscar 5567055 HFP-1378-IQ IC908 Cham-IQ Drill Head

Product Description

The Iscar HFP-1378-IQ IC908 Cham-IQ Drill Head, MPN 5567055, is designed for precise drilling tasks. Made from carbide, this drill head offers durability and effectiveness across various applications such as steel, stainless steel, cast iron, and other hard materials. The drill features a diameter of one point three seven eight inches, with a functional length of zero point four seven six inches. It is part of the HFP-IQ series and is recognized for its effective performance in high-temperature alloys.

• Durable carbide construction
• Functional length of zero point four seven six inches
• Compatible with various materials including hard alloys

Product Highlights

This Iscar drill head is designed for reliability and efficiency, making it suitable for demanding drilling operations.

Product Information

Standard Information

• Brand: Iscar
• Coating/Finish: TiAlN

Technical Specifications

• Series: HFP-IQ
• Diameter: 1.3780 inches (35.000 mm)
• Functional Length: 0.4760 inches (12.090 mm)
• Insert Thickness: 0.7760 inches
• MFG Grade: IC908
• Seat Size: 35.0
• Chamfer Angle: 30.00 degrees
• Work Material: Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
