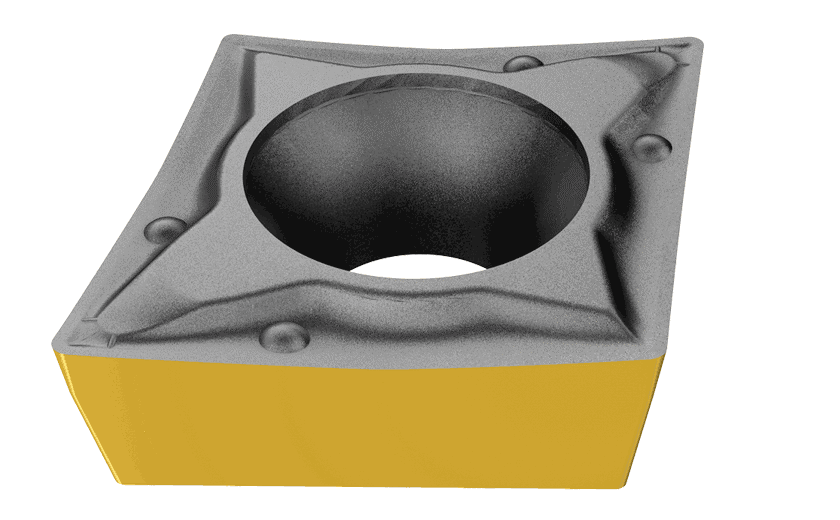

Iscar 5566970 CCMT-2-0-PF-IC6015 Power Insert

Product Description

The Iscar 5566970 CCMT-2-0-PF-IC6015 is a cutting insert designed for precision machining. This insert is suitable for fine finishing and medium applications with stainless steel. The carbide material allows for durability and extended use.

• Insert Shape: 80° Diamond
• Coating Type: TiCN+Al2O3+TiN
• Thickness: 0.0940 inches

Product Highlights

This insert is ideal for various machining tasks, offering reliable performance for trade professionals.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: CCMT

Technical Specifications

• Insert Shape: 80° Diamond
• Clearance Angle: 7° Positive
• Size: 0.2500 inches
• Corner Radius: 0.0080 inches
• Insert Material: Carbide
• Work Material: Stainless Steel
• Machining Application: Fine Finishing-Medium
• Insert Thickness: 0.0940 inches
• Insert Edge Length: 0.2480 inches
• Min Depth of Cut: 0.0080 inches
• Max Depth of Cut: 0.0980 inches
• Min Feed: 0.0016 inches
• Max Feed: 0.0098 inches
