Iscar 5566847 WNMG432F3P IC8150 Turning Insert Solid Carbide

Product Description

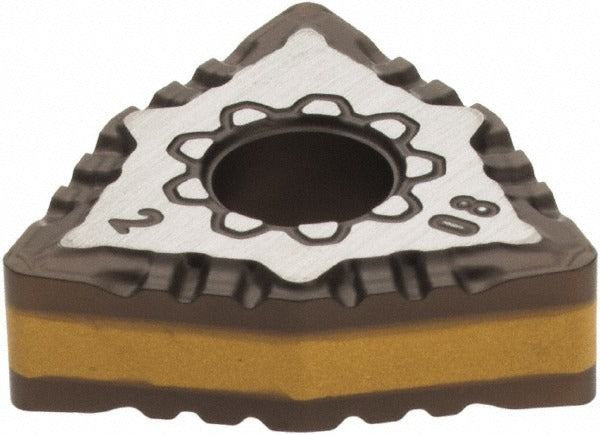

The ISCAR 5566847 is a solid carbide turning insert in the WNMG432F3P geometry, part of the Isoturn series. It is a trigon-shaped, double-ended insert with an 80-degree included angle, a 0.5-inch inscribed circle, and a 1/32-inch (0.0313-inch) corner radius. The insert measures 8.71 mm (0.343 inches) in length and 3/16 inch (0.1875 inches) thick. It carries a CVD-applied multilayer coating of TiCN, Al2O3, TiCN, and TiN under the IC8150 manufacturer grade. Licensed machinists, CNC operators, and tooling technicians install this insert in compatible turning toolholders for external and internal turning operations on lathes.

This insert is designed for turning operations on cast iron and steel workpieces, corresponding to ISO material codes K and P. The F3P chip breaker geometry and positive rake promote controlled chip formation and reduced cutting forces, making this insert well suited for light-to-medium finishing passes. Maximum depth of cut is 3.51 mm (0.138 inches). It is held in the toolholder by clamp and pin mounting methods and conforms to ISO 13399 standards. The Clearance Code is N and the Tolerance Code is M, consistent with standard WNMG insert toolholder pockets.

Key Features

• IC8150 grade with CVD multilayer TiCN / Al2O3 / TiCN / TiN coating for wear resistance on steel and cast iron
• F3P chip breaker with positive rake for controlled chip evacuation during finishing cuts
• Double-ended trigon (W) shape provides two cutting edges per insert
• 0.5-inch inscribed circle and 1/32-inch corner radius in standard WNMG 432 geometry
• Conforms to ISO 13399 insert identification standards
• Compatible with clamp and pin toolholder clamping systems

Compatibility

Designed as an OEM-style replacement insert for WNMG 432 geometry toolholders that accept clamp and pin clamping. Suitable for turning operations on cast iron (ISO K) and steel (ISO P) workpieces. Verify toolholder pocket geometry and clamping configuration before installation.

Installation Notes

Turning inserts are installed and replaced by machinists or CNC tooling technicians during scheduled tool changes or when wear is detected. Power down and lock out the machine before accessing the toolholder. Use the manufacturer-recommended torque wrench and clamping hardware to seat the insert; do not over-tighten the clamp screw by hand estimation alone. Inspect the insert pocket for debris or damage before seating a new insert to ensure proper contact and runout.
