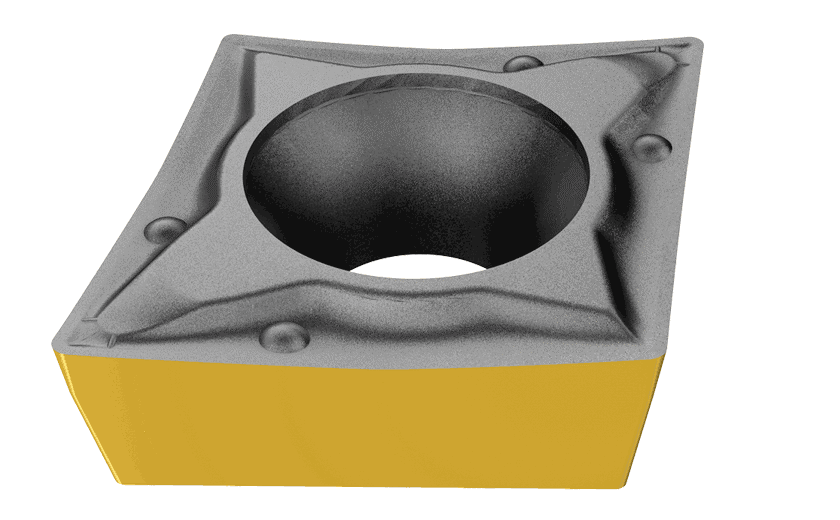

Iscar 5566752 CCMT-3-0-PF-IC806 Iscar Sumotec PVD Inserts

Product Description

The Iscar 5566752 CCMT-3-0-PF-IC806 Iscar Sumotec PVD Insert is designed for various machining applications. This insert is suitable for medium to semi-roughing operations and is essential for achieving desired cutting results.

• Insert Style: CCMT
• Insert Shape: 80° Diamond
• Insert Material: Carbide

Product Highlights

The Iscar Sumotec PVD Insert features a clearance angle of seven degrees, enhancing its performance in various applications. The coating of TiAlN and TiN allows for better heat resistance, making it suitable for high-temperature materials.

Product Information

Standard Information

• Brand: Iscar
• Insert Style: CCMT

Technical Specifications

• Insert Shape: 80° Diamond
• Corner Radius: 0.0080
• Work Material: Hi Temp
• Machining Application: Medium-Semi Roughing
• Insert Coating: TiAlN+TiN
• Insert Thickness: 0.1560
• Insert Edge Length: 0.3820
• Min Depth of Cut: 0.0200
• Max Depth of Cut: 0.1180
• Min Feed: 0.0020
• Max Feed: 0.0118
