Iscar 5566714 Replaceable Drill Tip 0.256 in IC908 Tialn

Product Description

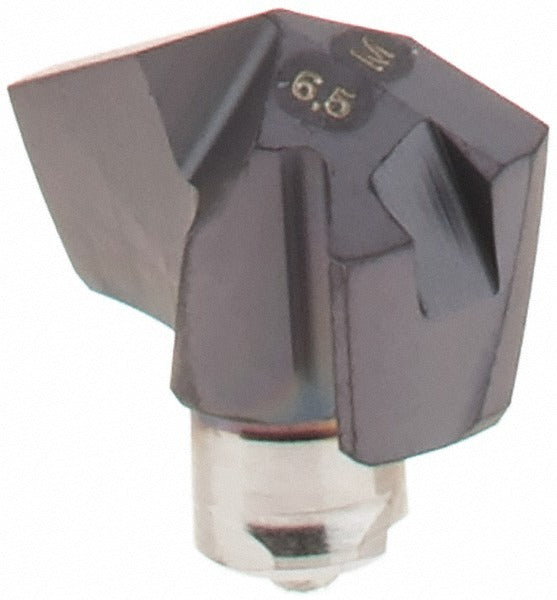

The ISCAR 5566714 is a replaceable carbide drill tip in the ICM series, designed for indexable drilling systems that use a clamp-style insert seat. The tip measures 0.2560 inches (7.00 mm) in cutting diameter with a 140-degree point angle, a helical flute geometry, and a web-thinned point for reduced thrust and improved chip evacuation. The substrate is solid carbide at submicron grain size, finished with a PVD-applied TiAlN coating. Seat size is 6.5, conforming to ISO 13399. This insert is installed and replaced by toolroom machinists and CNC machine operators performing precision hole-making operations in demanding materials.

The 5566714 is optimized for primary use in stainless steel, superalloys, and titanium - material codes M and S - where tool wear resistance and edge stability are critical. It also performs in secondary applications on steel, cast iron, and hard materials (material codes P, K, and H). The ICM-series replaceable tip system suits high-volume production drilling on machining centers where minimizing tool change downtime and maintaining hole quality are priorities. Coolant-through is not supported by this tip.

Key Features

• Solid submicron carbide substrate provides edge toughness in difficult-to-machine alloys
• PVD TiAlN coating delivers high-temperature wear resistance for stainless steel and superalloy applications
• 140-degree point angle with web thinning reduces entry thrust and centering error
• Helical, regular-spiral, 2-flute design promotes efficient chip flow in deep-hole drilling
• Clamp-held insert seat (size 6.5) enables fast tip exchange without removing the drill body from the spindle
• Conforms to ISO 13399 tooling data standard for compatibility with CAM and tool-management systems

Compatibility

Designed for use with ISCAR ICM-series indexable drill bodies accepting a size 6.5 insert seat; ISO number ICM 065. Verify body seat size and clamping method before ordering.

Installation Notes

Replaceable drill tips of this type are seated and clamped by a machinist or toolroom technician - ensure the spindle is fully stopped and the machine is locked out before tip exchange. Clean the insert pocket and seating surfaces before installing the tip to prevent seating errors that cause runout or premature failure. Use the torque value specified by the drill body manufacturer for the clamping screw; do not overtighten. Confirm tip orientation and engagement before returning the tool to service.
